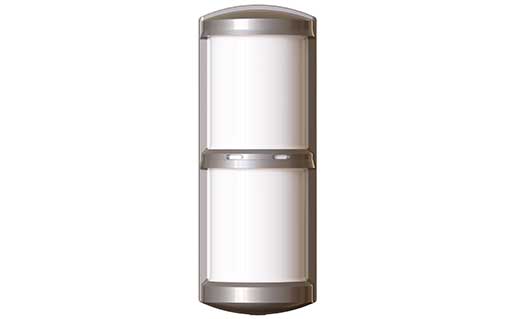

XD4 Series

Wired & Wireless External Detectors
The XD4 Series is designed primarily for Intruder Alarm applications



Orisec External Detector Range

XD4

180° External 4 x PIR, 2 x 12m

Summary

Four Separate PIR Detectors -
2 pairs
180º Coverage - 90º from each pair
4m to 24m Adjustable Detection
Range
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Hinged PCB for Easy Installation
Orisec External Detector Range

XD4-DT

180° External 4 x PIR + Dual Technology, 2 x 12m

Summary

Four Separate PIR Detectors -
2 pairs
Dual Tech Microwave (24GHz) / PIR
180º Coverage - 90º from each pair
4m to 24m Adjustable Detection
Range
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Hinged PCB for Easy Installation
Orisec External Detector Range

XD4-VB-AM

Anti-Masking External 2 x Vertical Beams PIR

Summary

Vertical Beam/Curtain Detector
Two Separate PIR Detectors
Anti-Masking Detection
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Hinged PCB for Easy Installation

Orisec External Detector Range

XD4-DT-AM

Anti-Masking External 180°
4 x PIR + Dual Technology, 2 x 12m

Summary

Four Separate PIR Detectors -
2 pairs
Anti-Masking Detection
Dual Tech Microwave (24GHz) / PIR
180º Coverage - 90º from each pair
4m to 24m Adjustable Detection
Range
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Hinged PCB for Easy Installation

Features

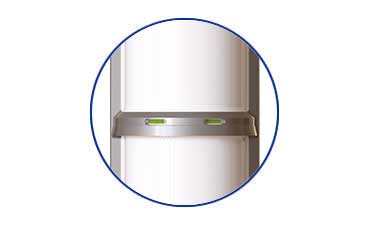

IP65 Waterproof Housing

IP65 Waterptoof Housing, Offers exceptional resistance to extreme weather conditions.

Offers exceptional resistance to extreme weather conditions.

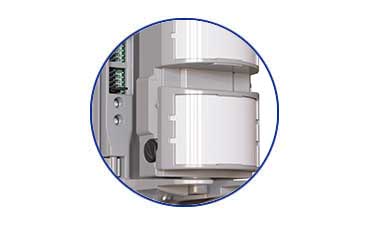

Independent PIR Sensors

Independent PIR Sensors

2x Two Independent PIR Sensors with non-overlapping fields of view giving improved false alarm immunity. Adjustable detection range between 2m to 12m in both directions, 24 metres max.

Coverage

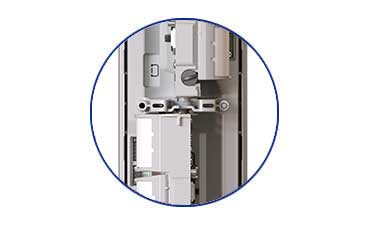

90º coverage angle which may be adjusted over 180º by rotating the chassis

180º coverage (90º from each pair).

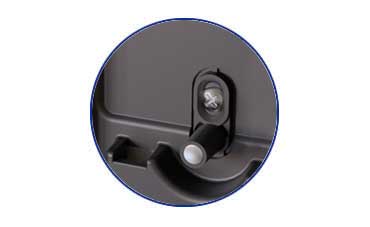

Optional Tamper

Optional Tamper Wall Tamper Screw.

(lid tamper comes as standard).

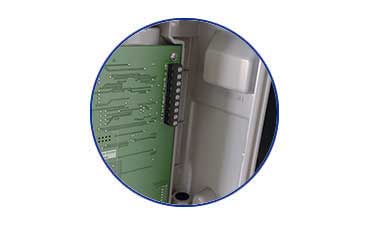

Hinged PCB

Hinged PCB provides easy wiring access. Easily detachable if required.

Provides easy wiring access. Easily detachable if required.

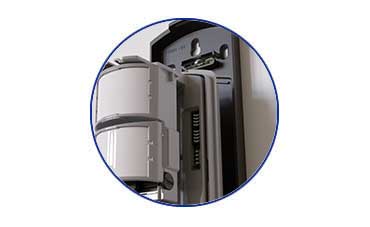

Removable PCB Assembly

Removable PCB Assembly The detector asssembly may be removed the backplate for easy installation.

The detector asssembly may be removed from the backplate for easy installation.

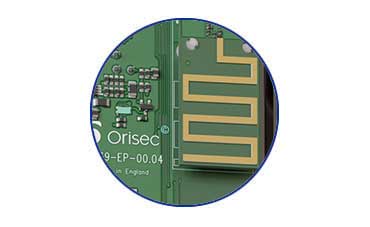

Optional Wireless Access Point

Adjustable Wall Tamper Screw.

Adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob.

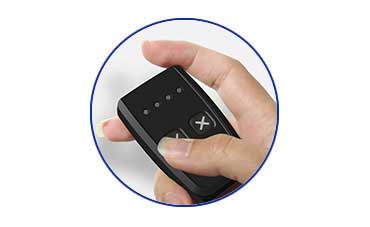

Walk Test Sounder & Wireless Walk Test Fob

Adjustable Wall Tamper Screw.

Sounder activates during walk test to ensure reliable detection. The Walk Test Fob gives a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

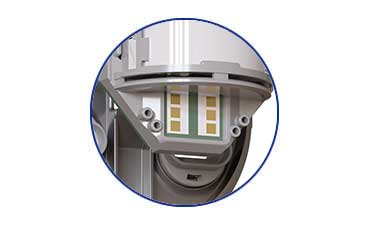

Microwave Sensor

Microwave Sensor Optional Dual Technology versions availble

Optional Dual Technology versions available.


XD4 Coverage Pattern
Only detects when both PIRs are triggered. This gives improved false alarm immunity.


XD4 Coverage Pattern

Vertical Beam / Curtain Coverage.

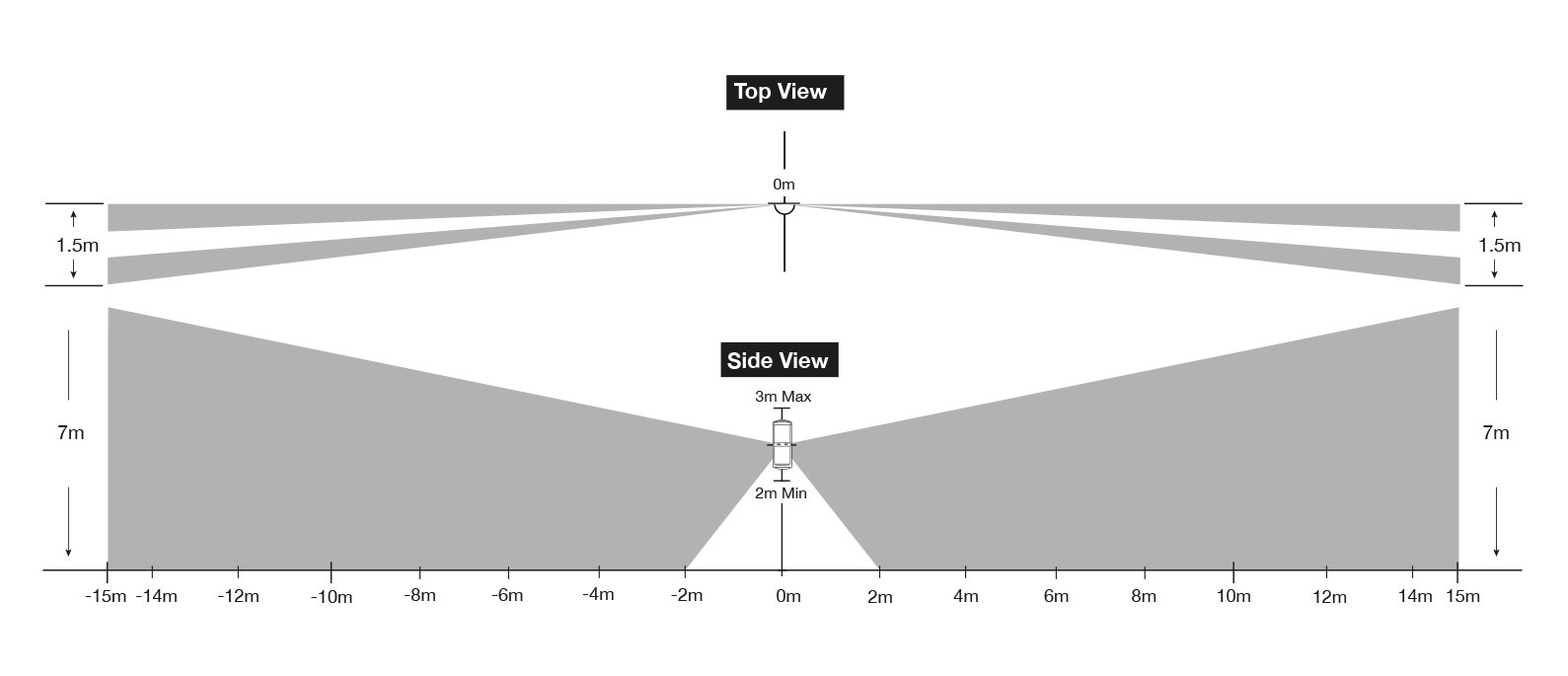

XD4-VB-AM Curtain Coverage

Using a Mobile - Rotate Device to View
XD4 XD4-DT XD4-VB-AM XD4-DT-AM
Description 180° External 4 x PIR, 2 x 12m 180° External 4 x PIR + Dual Technology, 2 x 12m Anti-Masking External 2 x Vertical Beams PIR Anti-Masking 180° External 4 x PIR + Dual Technology, 2 x 12m
Detection Technology 2 x Twin PIR non-overlapping 2 x Twin PIR non-overlapping
Dual Technology Combined		 2 x Vertical Beam/Curtain PIR 2 x Twin PIR non-overlapping
Dual Technology Combined
Primary Application Intruder Alarms Intruder Alarms Intruder Alarms Intruder Alarms
Optional Wireless Access Point*
Optional Walk Test Fob (W-KF-WT)
Anti-Masking
Range 2 x 12m x 90° 2 x 12m x 90° 2 x 15m x 5° 2 x 12m x 90°
Detection Areas 4 x 18 4 x 18 2 x 4 4 x 18
Recommended Mounting Height 1.8m - 2.0m 1.8m - 2.0m 2.0m - 3.0m 1.8m - 2.0m
Adjustable Pan
Sunlight Immunity >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux
Microwave Frequency K Band, 24 15-24.25 GHz K Band, 24 15-24.25 GHz K Band, 24 15-24.25 GHz
Tamper Lid and Wall Lid and Wall Lid and Wall Lid and Wall
Programmable Alarm Outputs 2 2 2 2
Day / Night Sensor
Pulse Count Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4
Programmable Low Level Piezo
Housing High Density ASA High Density ASA High Density ASA High Density ASA
Dimensions (H x W x D) mm 252 x 96 x 104 252 x 96 x 104 252 x 96 x 104 252 x 96 x 104
EN 50131 Grade 2, Class IV Grade 2, Class IV Grade 3, Class IV Grade 3, Class IV
Protection IP65 IP65 IP65 IP65

* The W-AP Wireless Access Point adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob. A local power supply is required for the detector.
