XD1 Series

Wired & Wireless External Detectors
The XD1 Series is designed primarily for CCTV & Lighting applications


Orisec External Detector Range

XD1

External PIR -
Wide Angle 20m

Summary

BS 8418 CCTV Compliant
NO/NC Relay for CCTV & Lighting
Selectable EOL Resistors for
Alarm Panels
Switched -ve Alarm & LUX Outputs
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Available in High Density ASA
or High Impact Zinc Alloy


Request Information
Orisec External Detector Range

XD1-DT

External Dual Technology -
Wide Angle 15m

Summary

BS 8418 CCTV Compliant
NO/NC Relay for CCTV & Lighting
Selectable EOL Resistors for
Alarm Panels
Switched -ve Alarm & LUX Outputs
Dual Tech Microwave (24GHz) / PIR
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Available in High Density ASA
or High Impact Zinc Alloy


Request Information
Orisec External Detector Range

XD1-DT-AM

Anti-Masking External Dual Technology
- Wide Angle 15m

Summary

BS 8418 CCTV Compliant
NO/NC Relay for CCTV & Lighting
Selectable EOL Resistors for
Alarm Panels
Switched -ve Alarm & LUX Outputs
Anti-Masking Detection
Dual Tech Microwave (24GHz) / PIR
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Available in High Density ASA
or High Impact Zinc Alloy



Request Information
Orisec External Detector Range

XD1-VB

External PIR -
Vertical Beam 15m

Summary

Vertical Beam/Curtain Detector
BS 8418 CCTV Compliant
NO/NC Relay for CCTV & Lighting
Selectable EOL Resistors for
Alarm Panels
Switched -ve Alarm & LUX Outputs
2.0m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Available in High Density ASA
or High Impact Zinc Alloy

Request Information
Orisec External Detector Range

XD1-LR

External PIR -
Long Range 50m

Summary

Long Range 50m Detector
NO/NC Relay for CCTV & Lighting
Selectable EOL Resistors for
Alarm Panels
Switched -ve Alarm & LUX Outputs
BS 8418 CCTV Compliant
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Available in High Density ASA
or High Impact Zinc Alloy


Request Information
Orisec External Detector Range

W-XD1

Wireless External PIR -
Wide Angle 20m

Summary

BS 8418 CCTV Compliant
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications



Request Information
Orisec External Detector Range

W-XD1-DT

Wireless External Dual Technology -
Wide Angle 15m

Summary

BS 8418 CCTV Compliant
Dual Tech Microwave (24GHz) / PIR
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications



Request Information
Orisec External Detector Range

W-XD1-VB

Wireless External PIR -
Vertical Beam 15m

Summary

Vertical Beam/Curtain Detector
BS 8418 CCTV Compliant
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications


Request Information
Orisec External Detector Range

W-XD1-LR

Wireless External PIR -
Long Range 50m

Summary

Long Range 50m Detector
BS 8418 CCTV Compliant
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications


Request Information

Features

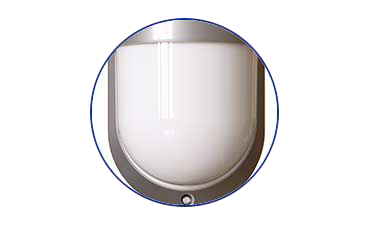

IP65 Waterproof Housing

IP65 Waterptoof Housing, Offers exceptional resistance to extreme weather conditions.

Offers exceptional resistance to extreme weather conditions.

Coverage

100º coverage angle which may be adjusted over 180º by rotating the chassis

100º coverage angle which may be adjusted over 180º by rotating the chassis.

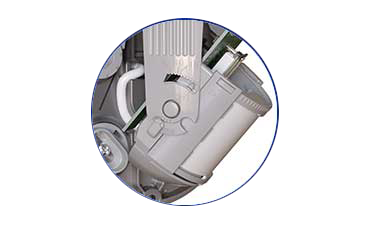

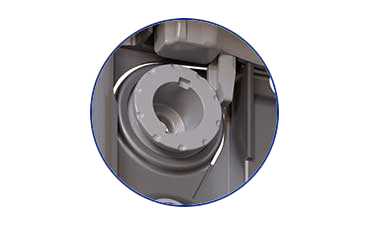

Tamper

Adjustable Wall Tamper Screw.

Adjustable wall tamper screw.

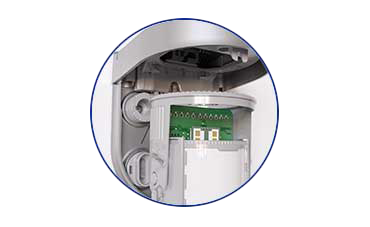

Removable PCB Assembly

Removable PCB Assembly. The detector assembly may be removed the backplate for easy installation.

The detector assembly may be removed from the backplate for easy installation.

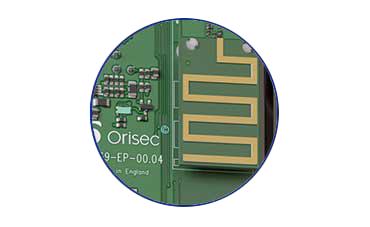

Optional Wireless Access Point

Adjustable Wall Tamper Screw.

Adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob.

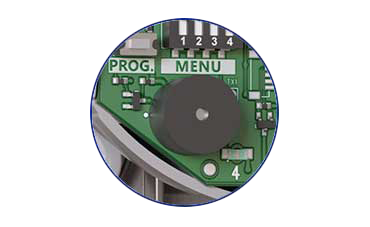

Walk Test Sounder

Walk Test Sounder

Sounder activates during walk test to ensure reliable detection.

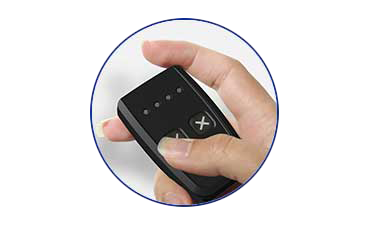

Wireless Walk Test Fob

Wireless Walk Test Fob.

Gives you a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

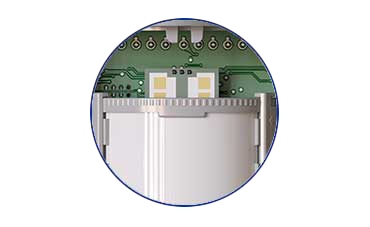

Microwave Sensor

Microwave Sensor Optional Dual Technology versions availble

Optional Dual Technology versions available.

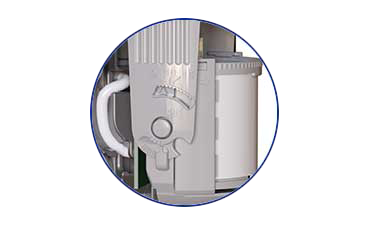

Range

Microwave Sensor Optional Dual Technology versions availble

The vertical angle of the PCB may be adjusted from 0° to 45°. This can be used to:
• Alter the PIR range,
• Allow for different mounting heights, or
• Allow for sloping areas to be protected.

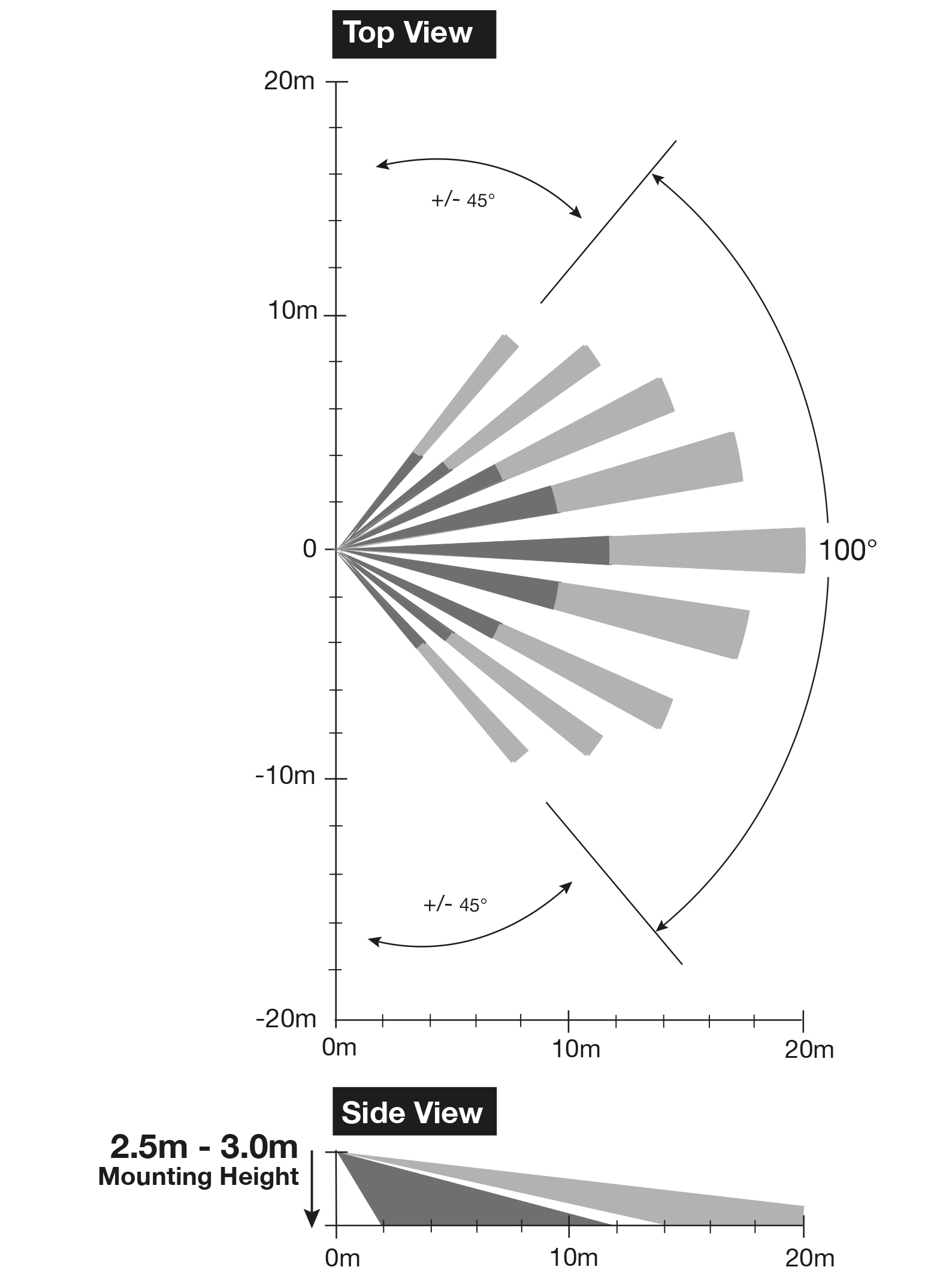

XD1 Coverage Pattern


XD2 Coverage Pattern


XD1-DT Coverage Pattern

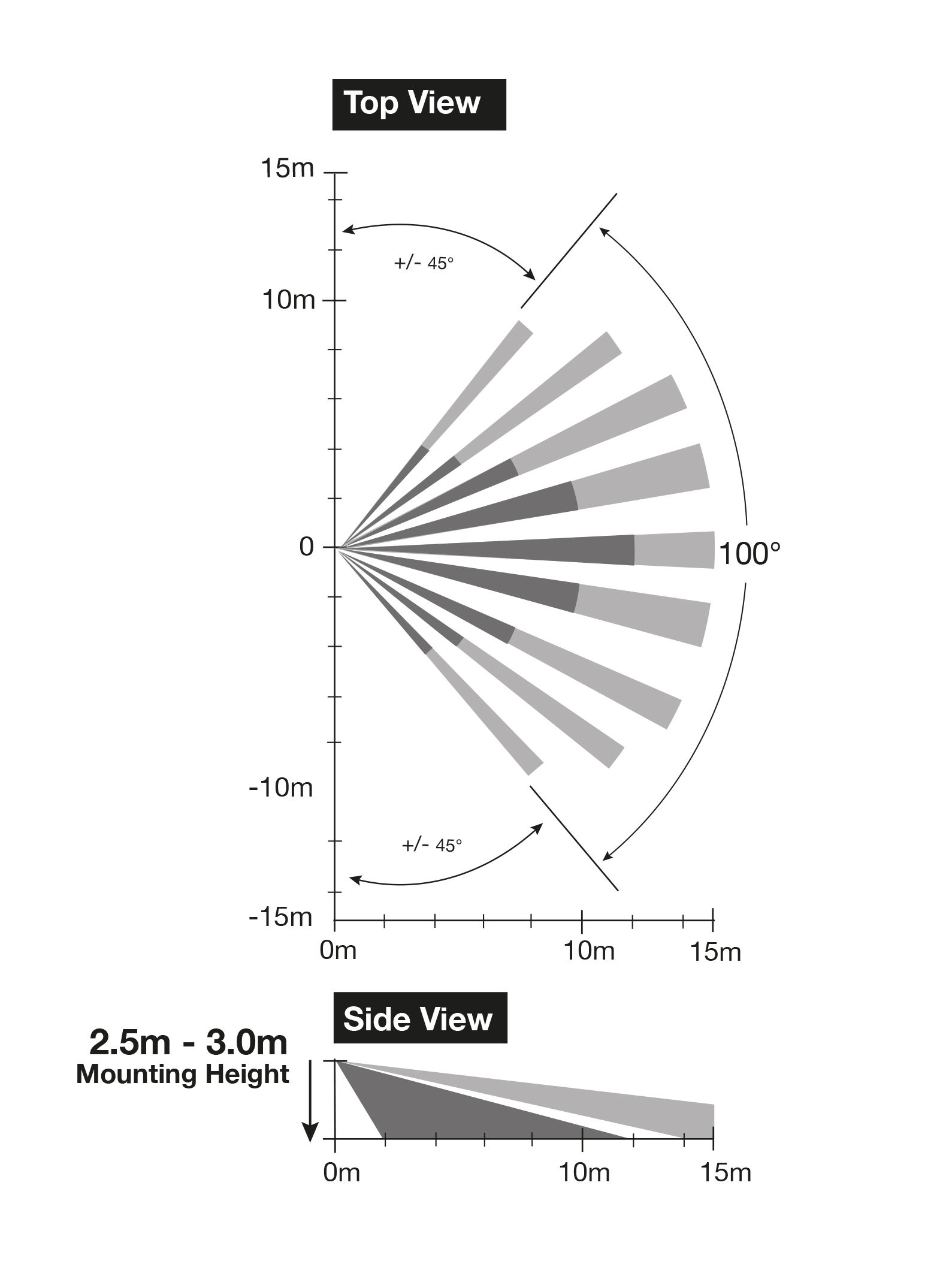

XD1-DT,XD1-DT-AM Coverage Pattern

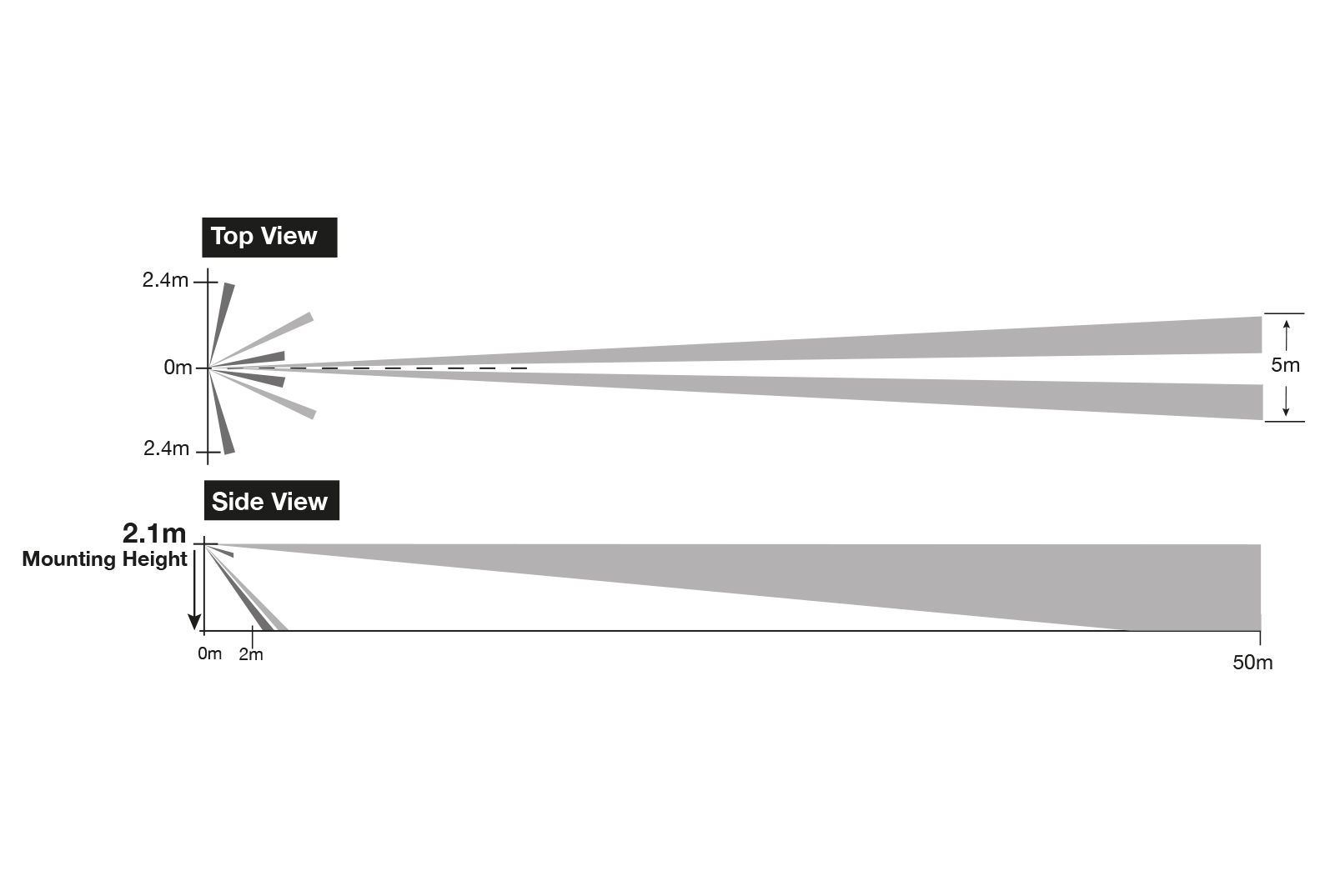

XD1-LR Coverage Pattern

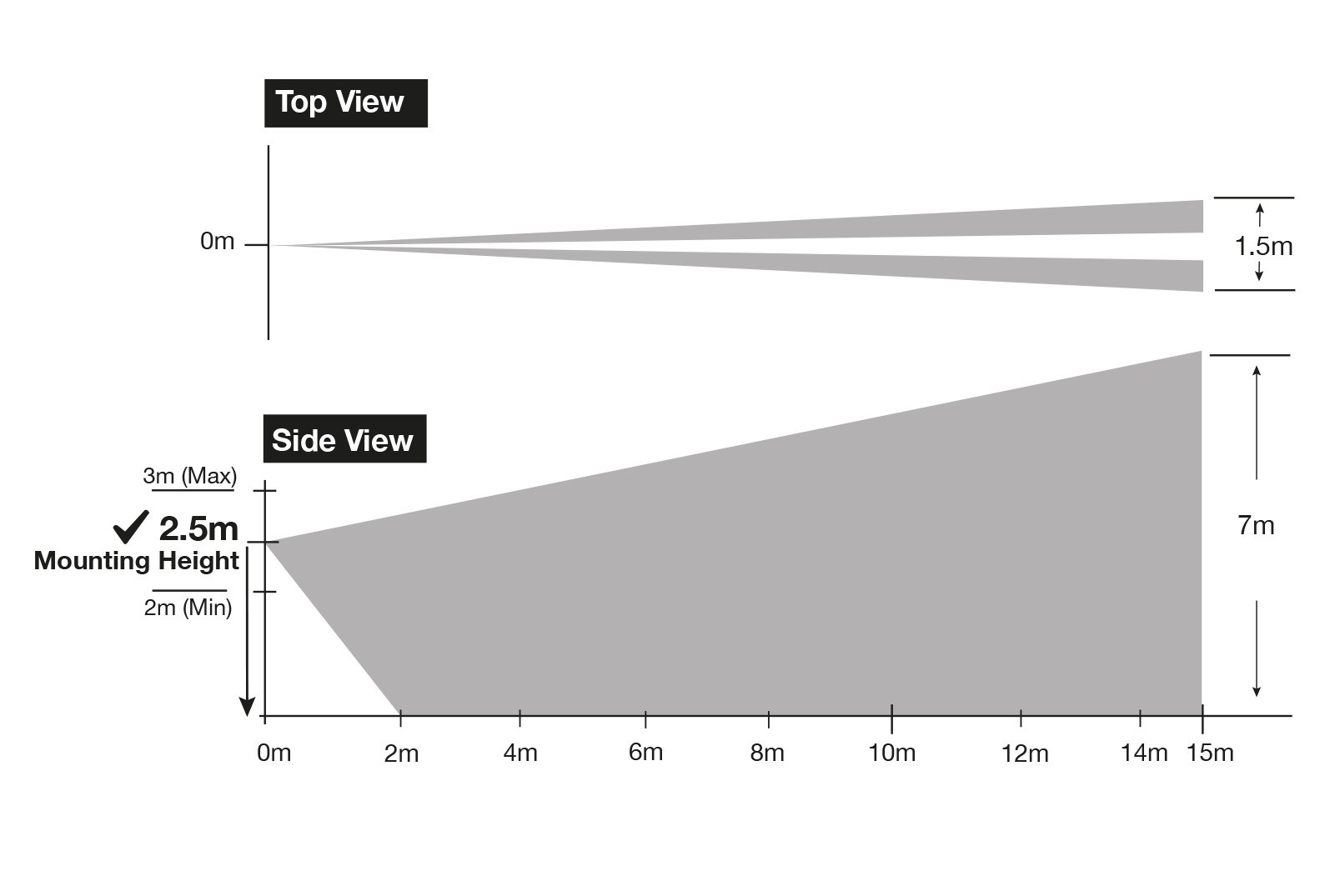

XD1-VB Coverage Pattern


XD1-VB Coverage Pattern

XD1-VB Coverage Pattern

Using a Mobile - Rotate Device to View
XD1 XD1-DT XD1-DT-AM XD1-VB XD1-LR W-XD1 W-XD1-DT W-XD1-VB W-XD1-LR
Description External PIR, Wide Angle 20m External Dual Technology, Wide Angle 15m Anti-Masking External Dual Technology, Wide Angle 15m External PIR, Vertical Beam 15m External PIR, Long Range 15m Wireless External PIR, Wide Angle 20m Wireless External Dual Technology, Wide Angle 15m Wireless External PIR, Vertical Beam 215m Wireless External PIR, Long Range 20m
Detection Technology PIR Dual Technology Dual Technology PIR PIR PIR Dual Technology PIR PIR
Primary Application CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting
Optional Wireless Access Point*
Optional Walk Test Fob (W-KF-WT)
Built in Walk Test Sounder
Anti-Masking
Range 20m x 100° 15m x 100° 15m x 100° 15m x 5° 50m x 3° 20m x 100° 15m x 100° 15m x 5° 50m x 3°
Detection Areas 36 36 36 2 8 36 36 2 8
Recommended Mounting Height 2.5m - 3.0m 2.5m - 3.0m 2.5m - 3.0m 2.0m - 3.0m 2.1m 2.5m - 3.0m 2.5m - 3.0m 2.0m - 3.0m 2.1m
Adjustable Pan
Adjustable Tilt
Sunlight Immunity >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux
Tamper Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall
Programmable Alarm Outputs 3 3 3 3 3
Day / Night Sensor
Pulse Count Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4
Rotating Mounting Feet 2 2 2 2 2 2 2 2 2
Housing High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA High Density ASA High Density ASA High Density ASA
Battery CR123A 3V Lithium CR123A 3V Lithium CR123A 3V Lithium CR123A 3V Lithium
Average Battery Life > 2 Years > 2 Years > 2 Years > 2 Years
True Battery Reading
Frequencies 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz
Frequency Hopping Technology
2 Way Wireless Communications
Typical Wireless Range > 150m Line of Sight > 150m Line of Sight > 150m Line of Sight > 150m Line of Sight
Dimensions (H x W x D) mm 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110
BS 8418 Compliant
Protection IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65

* The W-AP Wireless Access Point adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob. A local power supply is required for the detector.
