XD1 Wireless Series

Wired & Wireless External Detectors
The XD1 Series is designed primarily for CCTV & Lighting applications



Orisec External Detector Range

W-XD1

Wireless External PIR - Wide Angle 20m

Summary

2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications
Orisec External Detector Range

W-XD1-DT

Wireless External Dual Technology - Wide Angle 15m

Summary

Dual Tech Microwave (24GHz) / PIR
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications
Orisec External Detector Range

W-XD1-VB

Wireless External PIR - Vertical Beam 15m

Summary

Vertical Beam/Curtain Detector
2.5m to 3.0m Mounting Height
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications
Orisec External Detector Range

W-XD1-LR

Wireless External PIR - Long Range 50m

Summary

Long Range 50m Detector
Adjustable Pan & Tilt
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications

Features

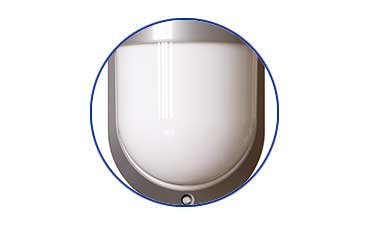

IP65 Waterproof Housing

IP65 Waterptoof Housing, Offers exceptional resistance to extreme weather conditions.

Offers exceptional resistance to extreme weather conditions.

Coverage

100º coverage angle which may be adjusted over 180º by rotating the chassis

100º coverage angle which may be adjusted over 180º by rotating the chassis.

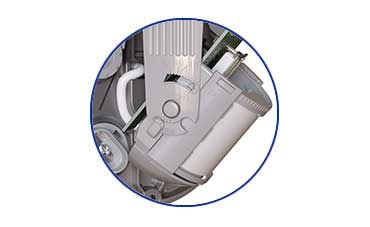

Tamper

Adjustable Wall Tamper Screw.

Adjustable wall tamper screw.

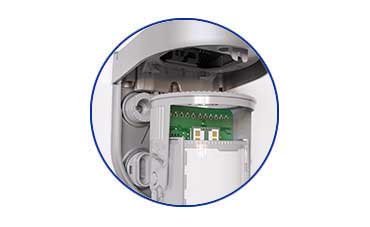

Removable PCB Assembly

Removable PCB Assembly. The detector assembly may be removed the backplate for easy installation.

The detector assembly may be removed from the backplate for easy installation.

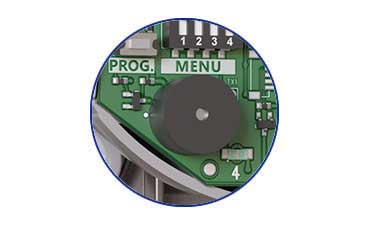

Walk Test Sounder

Walk Test Sounder

Sounder activates during walk test to ensure reliable detection.

Wireless Walk Test Fob

Wireless Walk Test Fob.

Gives you a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

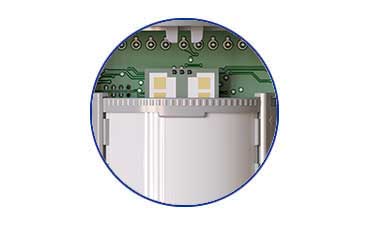

Microwave Sensor

Microwave Sensor Optional Dual Technology versions availble

Optional Dual Technology versions available.

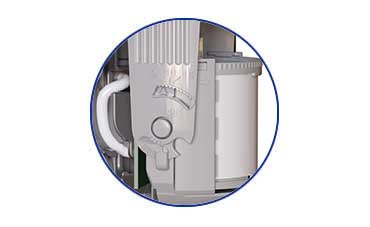

Range

Microwave Sensor Optional Dual Technology versions availble

The vertical angle of the PCB may be adjusted from 0° to 45°. This can be used to:
• Alter the PIR range,
• Allow for different mounting heights, or
• Allow for sloping areas to be protected.


W-XD1 Coverage Pattern


XD2 Coverage Pattern


W-XD1-DT Coverage Pattern

XD1-DT,XD1-DT-AM Coverage Pattern


W-XD1-LR Coverage Pattern

XD1-VB Coverage Pattern


W-XD1-VB Coverage Pattern

XD1-VB Coverage Pattern

Using a Mobile - Rotate Device to View
W-XD1 W-XD1-DT W-XD1-VB W-XD1-LR
Detection Technology PIR Dual Technology PIR PIR
Primary Application CCTV & Lighting CCTV & Lighting CCTV & Lighting CCTV & Lighting
Optional Walk Test Fob (W-KF-WT)
Range 20m x 100° 15m x 100° 15m x 5° 50m x 3°
Detection Areas 36 36 2 8
Recommended Mounting Height 2.5m - 3.0m 2.5m - 3.0m 2.0m - 3.0m 2.1m
Adjustable Pan
Adjustable Tilt
Sunlight Immunity >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux
Tamper Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall
Programmable Alarm Outputs
Day / Night Sensor
Pulse Count Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4
Programmable Low Level Piezo
Battery CR123A 3V Lithium CR123A 3V Lithium CR123A 3V Lithium CR123A 3V Lithium
Average Battery Life > 2 Years > 2 Years > 2 Years > 2 Years
True Battery Reading
Frequencies 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz 868.65MHz & 869 15MHz
Frequency Hopping Technology
2 Way Wireless Communications
Typical Wireless Range > 150m Line of Sight > 150m Line of Sight > 150m Line of Sight > 150m Line of Sight
Rotating Mounting Feet 2 2 2 2
Housing High Density ASA High Density ASA High Density ASA High Density ASA
Dimensions (H x W x D) mm 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110 143 x 107 x 110
BS 8418 Compliant
Protection IP65 IP65 IP65 IP65
