XD2 Series

Wired & Wireless External Detectors
The XD2 Series is designed primarily for Intruder Alarm applications


Orisec External Detector Range

XD2

External Twin PIR Wide Angle 12m

Summary

Selectable EOL Resistors for
Alarm Panels
NO/NC Relay for CCTV & Lighting
Switched -ve Alarm & LUX Outputs
Adjustable Detection Range & Angle
Two Separate PIR Detectors
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
1.8m to 2.0m Mounting Height


Request Information
Orisec External Detector Range

XD2-DT

External Twin PIR + Dual Technology Wide Angle 12m

Summary

Selectable EOL Resistors for
Alarm Panels
NO/NC Relay for CCTV & Lighting
Switched -ve Alarm & LUX Outputs
Adjustable Detection Range & Angle
Dual Tech Microwave (24GHz) / PIR
Two Separate PIR Detectors
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
1.8m to 2.0m Mounting Height


Request Information
Orisec External Detector Range

XD2-AM

Anti-Masking External Twin PIR Wide Angle 12m

Summary

Selectable EOL Resistors for
Alarm Panels
NO/NC Relay for CCTV & Lighting
Switched -ve Alarm & LUX Outputs
Adjustable Detection Range & Angle
Anti-Masking Detection
Two Separate PIR Detectors
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
1.8m to 2.0m Mounting Height


Request Information


Orisec External Detector Range

W-XD2

Wireless External Twin PIR Wide Angle 12m

Summary

Adjustable Detection Range & Angle
Two Separate PIR Detectors
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications
1.8m to 2.0m Mounting Height


Request Information
Orisec External Detector Range

W-XD2-DT

Wireless External Twin PIR + Dual Technology Wide Angle 12m

Summary

Adjustable Detection Range & Angle
Dual Tech Microwave (24GHz) / PIR
Two Separate PIR Detectors
Built-In Walk Test Sounder
Optional Wireless Walk Test Fob
IP65 Waterproof Sealed Housing
Animal Immunity
Day/Night Sensor
Wireless Range >150m Line of Sight
2 Way Wireless Communications
1.8m to 2.0m Mounting Height


Request Information

Features

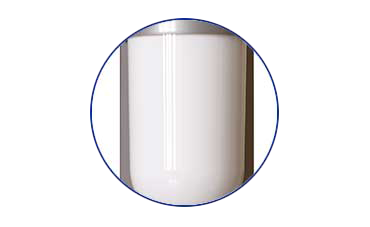

IP65 Waterproof Housing

IP65 Waterptoof Housing, Offers exceptional resistance to extreme weather conditions.

Offers exceptional resistance to extreme weather conditions.

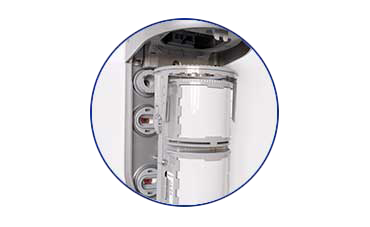

Independent PIR Sensors

Independent PIR Sensors

Two Independent PIR Sensors with non-overlapping fields of view giving improved false alarm immunity. Adjustable detection range between 2m & 12m.

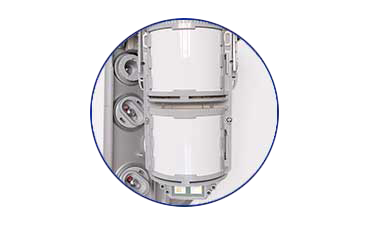

Coverage

90º coverage angle which may be adjusted over 180º by rotating the chassis

90º coverage angle which may be adjusted over 180º by rotating the chassis.

Tamper

Adjustable Wall Tamper Screw.

Adjustable wall tamper screw.

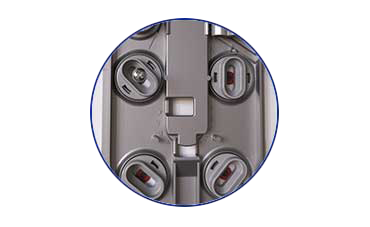

Mounting

Four Rotating Mounting Feet.

Four rotating mounting feet.

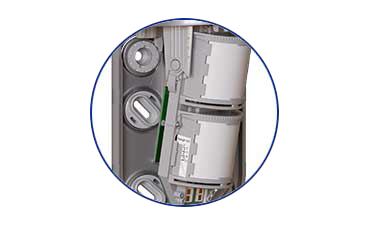

Removable PCB Assembly

Removable PCB Assembly The detector asssembly may be removed the backplate for easy installation.

The detector asssembly may be removed from the backplate for easy installation.

Walk Test Sounder & Wireless Walk Test Fob

Adjustable Wall Tamper Screw.

Sounder activates during walk test to ensure reliable detection. The Walk Test Fob gives a visual and vibrating indication of detection during a walk test to aid testing in bright conditions.

Optional Wireless Access Point

Adjustable Wall Tamper Screw.

Adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob.

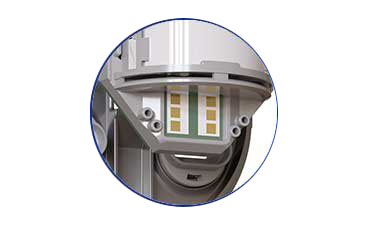

Microwave Sensor

Microwave Sensor Optional Dual Technology versions availble

Optional Dual Technology versions available.

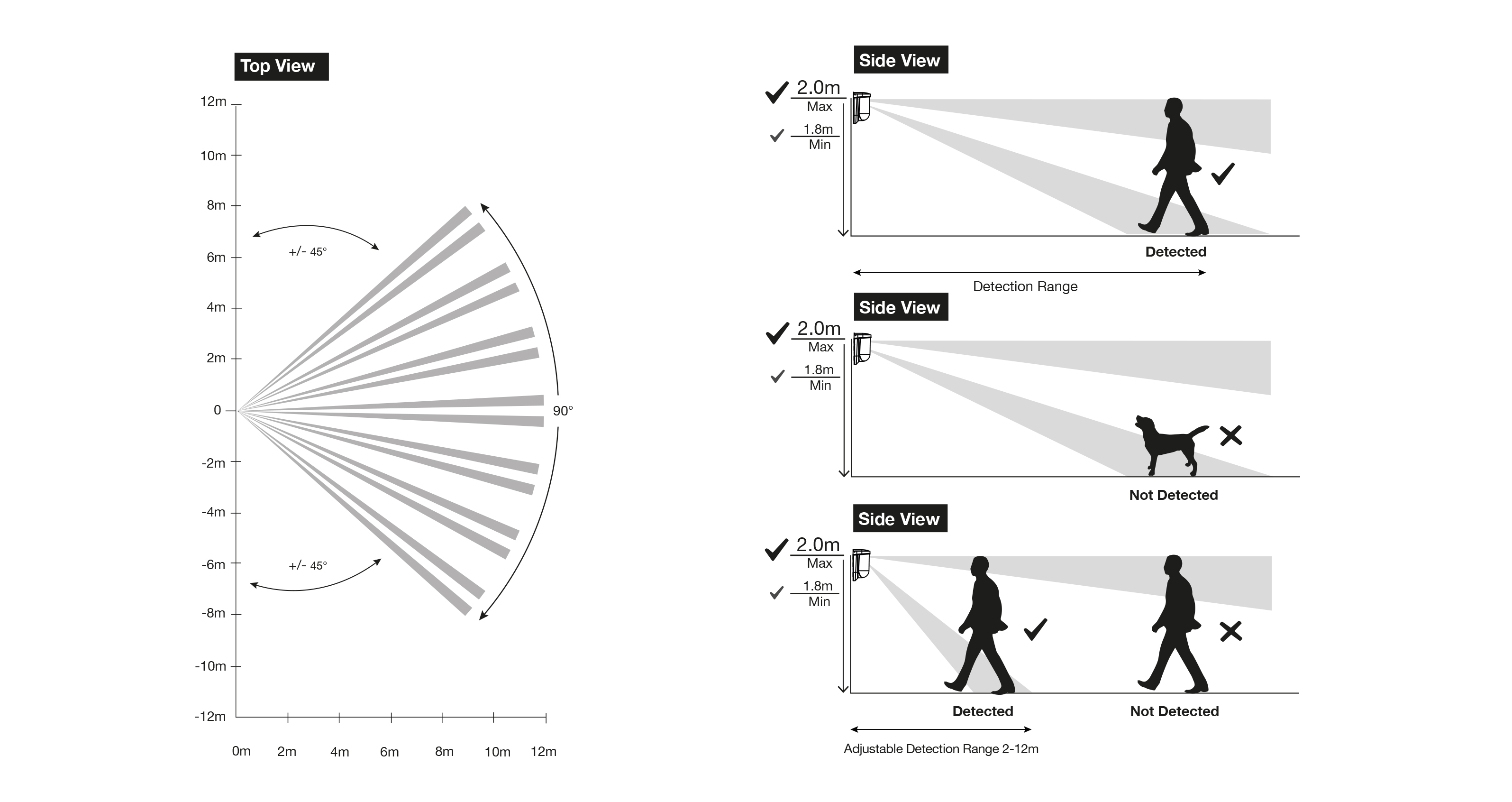

XD2 Coverage Pattern
Only detects when both PIRs are triggered. This gives improved false alarm immunity.


XD2 Coverage Pattern

Using a Mobile - Rotate Device to View
XD2 XD2-DT XD2-AM W-XD2 W-XD2-DT
Description External Twin PIR, Wide angle 12m External Twin PIR + Dual Technology, Wide angle 12m Anti-Masking External Twin PIR, Wide angle 12m Wireless External Twin PIR, Wide angle 12m Wireless External Twin PIR + Dual Technology Wide angle 12m
Detection Technology Twin PIR non-overlapping Twin PIR non-overlapping
Dual Technology		 Twin PIR non-overlapping
Dual Technology		 Twin PIR non-overlapping Twin PIR non-overlapping
Dual Technology
Primary Application Intruder Alarms Intruder Alarms Intruder Alarms Intruder Alarms Intruder Alarms
Optional Wireless Access Point*
Optional Walk Test Fob (W-KF-WT)
Anti-Masking
Range 12m x 90° 12m x 90° 12m x 90° 12m x 90° 12m x 90°
Detection Areas 2 x 18 2 x 18 2 x 18 2 x 18 2 x 18
Recommended Mounting Height 1.8m - 2.0m 1.8m - 2.0m 1.8m - 2.0m 1.8m - 2.0m 1.8m - 2.0m
Adjustable Pan
Sunlight Immunity >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux >50,000 Lux
Microwave Frequency K Band, 24 15-24.25 GHz K Band, 24 15-24.25 GHz
Tamper Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall Lid and Adjustable Wall
Programmable Alarm Outputs 3 3 3
Day / Night Sensor
Pulse Count Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4 Digital 1, 2, 3 or 4
Programmable Low Level Piezo
Battery CR123A 3V Lithium CR123A 3V Lithium
Average Battery Life >2 Years >2 Years
True Battery Reading
Frequencies 868.65MHz & 869.15MHz 868.65MHz & 869.15MHz
Frequency Hopping Technology
2 Way Wireless Communications
Typical Wireless Range >150m Line of Sight >150m Line of Sight
Rotating Mounting Feet 4 4 4 4 4
Housing High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA / High Impact Zinc Alloy High Density ASA High Density ASA
Dimensions (H x W x D) mm 200 x 107 x 110 200 x 107 x 110 200 x 107 x 110 200 x 107 x 110 200 x 107 x 110
EN 50131 Grade 2, Class IV Grade 2, Class IV Grade 3, Class IV Grade 2, Class IV Grade 2, Class IV
Protection IP65 IP65 IP65 IP65 IP65
* The W-AP Wireless Access Point adds wireless connectivity to a wired device enabling full wireless integration and/or use of the Wireless Walk Test Fob. A local power supply is required for the detector.
