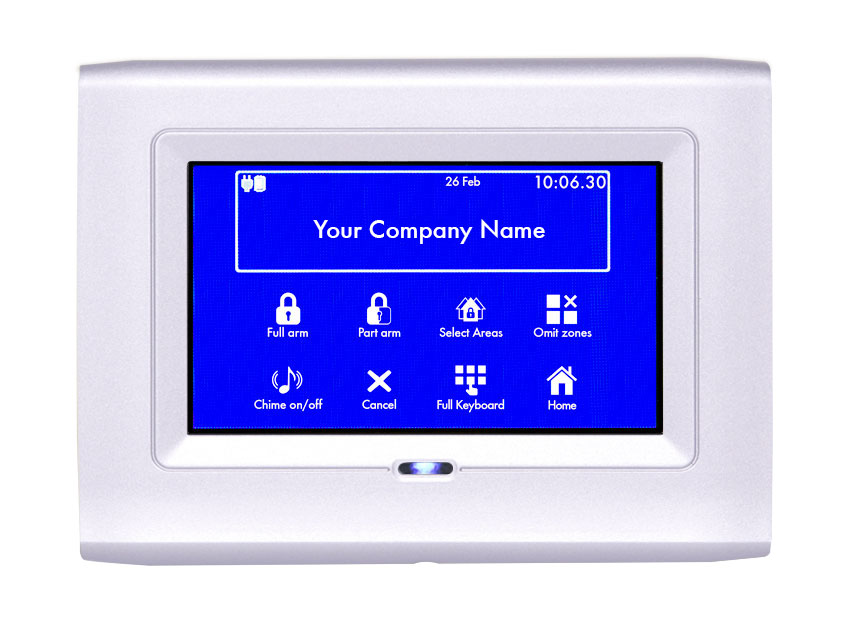

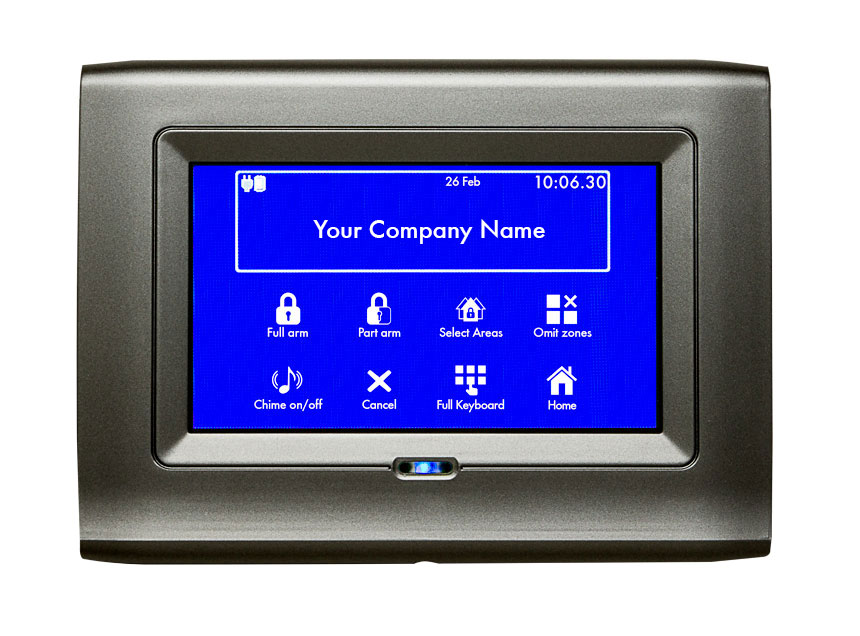

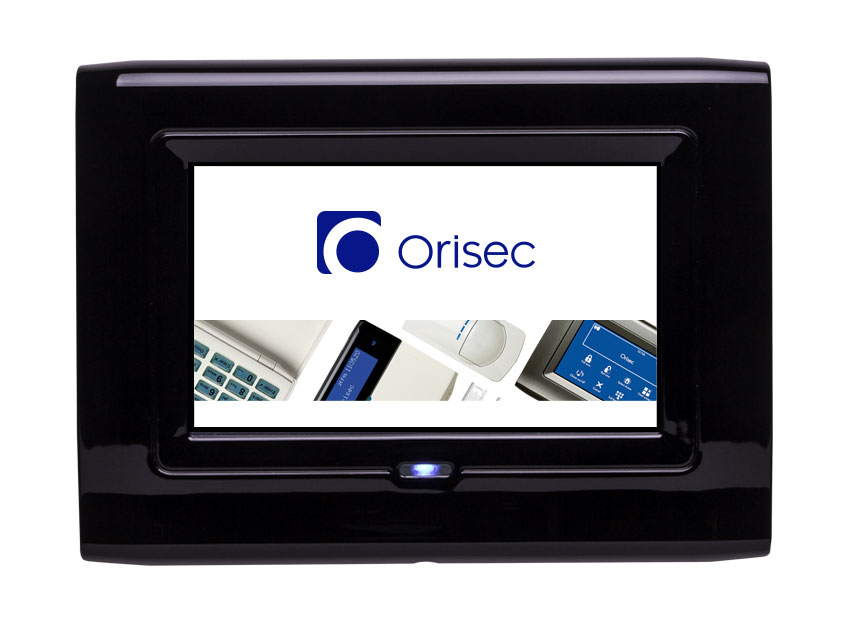

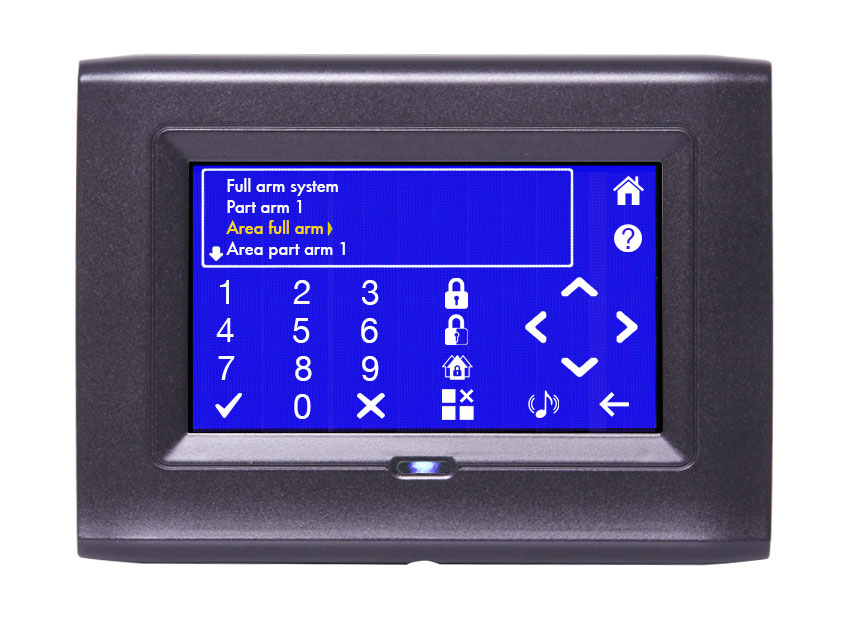

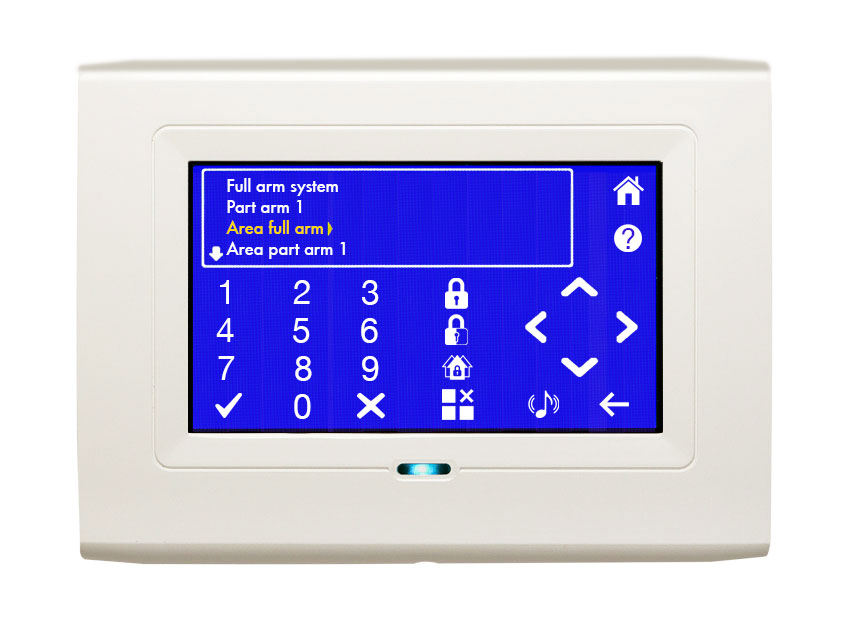

Five Finishes
Company Logo on Screen
5" Touch Screen
Integrated Installation Manual
Programmable Screen Designs
User Selectable Colours
Keypad Randomiser
3 Zone Inputs OR Outputs
Programmable Volume Levels
Light Sensor
Self Adjusting Backlight
Temperature Sensor
On-Board Sounder
16 Ohm Speaker Driver/Output
Modular Backplates - Flush,
Low Profile or Surface Mount
20 Preset Colour Themes
Choose from any of the 20 preset colour themes
or custom set your own colours.

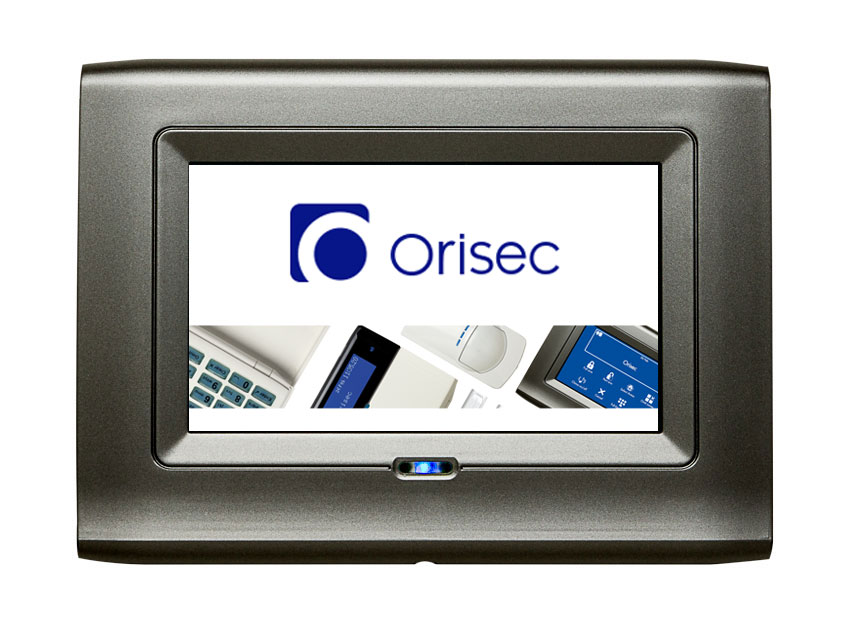

Your Company Logo on Screen
Elevate your brand by displaying your
company logo in full colour.
Using a Mobile - Rotate Device to View
| TK-650 | |
|---|---|
| Description | 5" Touch Screen Keypad |
| Inegrated Installation Manual | |
| NFC Prox Tag Support | |
| Programmable Inputs/Outputs | 3 |
| 128 Character Display | |
| Temperature Sensor | |
| On-Board Sounder | |
| 16 Ohm Speaker Support | |
| 'Copy & Paste' Function | |
| Selectable Language Per User | |
| Programmable Volume Levels | |
| Light Sensor | |
| Self-Adjusting Baclkight | |
| Tamper Detection Options | Lid, Wall & Screw |
| QWERTY Keyboard | |
| Company Logo on Screen | |
| User Selectable Colour | |
| Keypad Randomiser | |
| Full Programming | |
| Hinged PCB | |
| Mounting Options | Flush/Low Profile/Surface Mount |
| Input Voltage | 9-15 Vdc |
| Current Consumption - Quiescent | 50mA |
| Current Consumption - Backlit | 100mA |
| Dimensions (based on low profile) | 166mm x 121mm x 26mm |
| Colour Finishes | White/ Metallic Silver/ Metallic Grey/ Graphite/ Piano Black |
| Material | High Density ASA |
Mounting Options

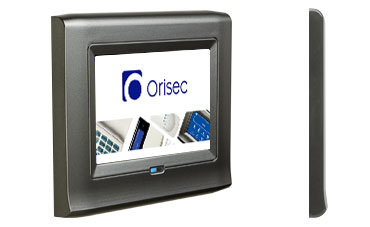

Flush Mount
Low Profile

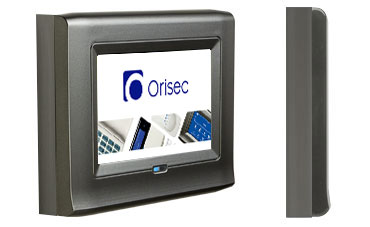

Surface Mount
