Grade 3
8 Different Finishes
Integrated Installation Manual
3 Zone Inputs OR Outputs
128 Character Display
Programmable Volume Levels
Light Sensor
Self Adjusting Backlight
Temperature Sensor
On-Board Sounder
16 Ohm Speaker Driver/Output
Modular Backplates - Flush,
Low Profile or Surface Mount
Mounting Options

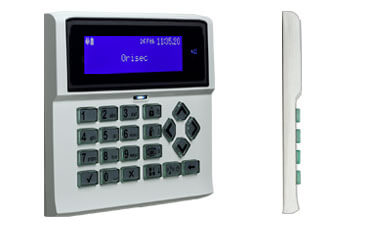

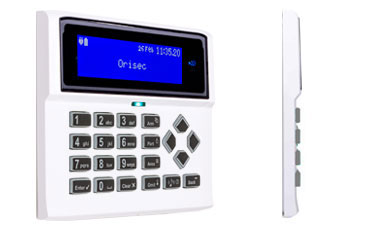

Flush Mount

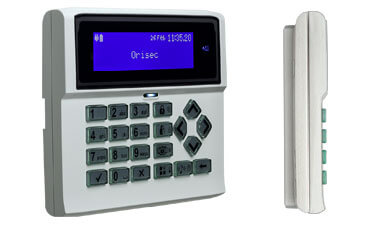

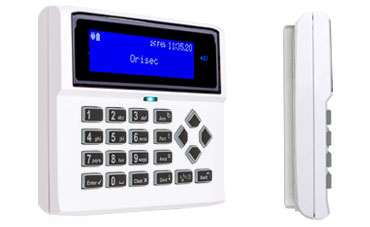

Low Profile Surface Mount

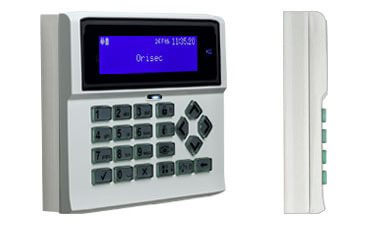

Surface Mount
RK-700
Grade 3
Integrated Installation Manual
3 Zone Inputs OR Outputs
128 Character Display
Programmable Volume Levels
Light Sensor
Self Adjusting Backlight
Temperature Sensor
On-Board Sounder
16 Ohm Speaker Driver/Output
Modular Backplates - Flush,
Low Profile or Surface Mount
Mounting Options
Flush Mount
Low Profile Surface Mount
Surface Mount
Using a Mobile - Rotate Device to View
| RK-700 | |
|---|---|
| Description | LCD Keypad |
| Inegrated Installation Manual | |
| NFC Prox Tag Support | |
| Programmable Inputs/Outputs | 3 |
| 128 Character Display | |
| Temperature Sensor | |
| On-Board Sounder | |
| 16 Ohm Speaker Support | |
| 'Copy & Paste' Function | |
| Selectable Language Per User | |
| Programmable Volume Levels | |
| Light Sensor | |
| Self-Adjusting Baclkight | |
| Tamper Detection Options | Lid, Wall & Screw |
| QWERTY Keyboard | |
| Company Logo on Screen | |
| User Selectable Colour | |
| Keypad Randomiser | |
| Full Programming | |
| Hinged PCB | |
| Mounting Options | Flush/Low Profile/Surface Mount |
| Input Voltage | 9-15 Vdc |
| Current Consumption - Quiescent | 35mA |
| Current Consumption - Backlit | 60mA |
| Dimensions (based on low profile) | 166mm x 121mm x 26mm |
| Colour Finishes | White |
| Material | High Density ASA |
| Local External PSU | |
| Battery Powered |
