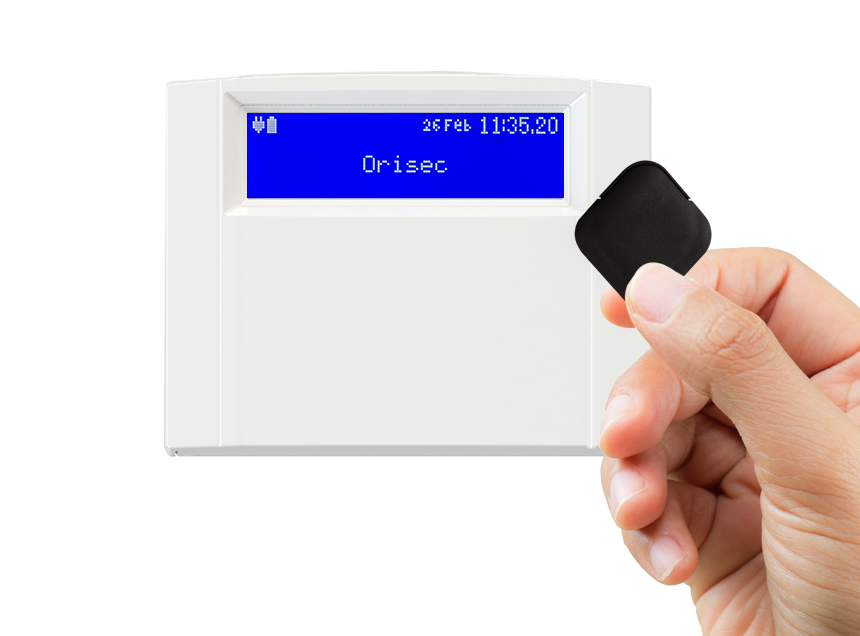

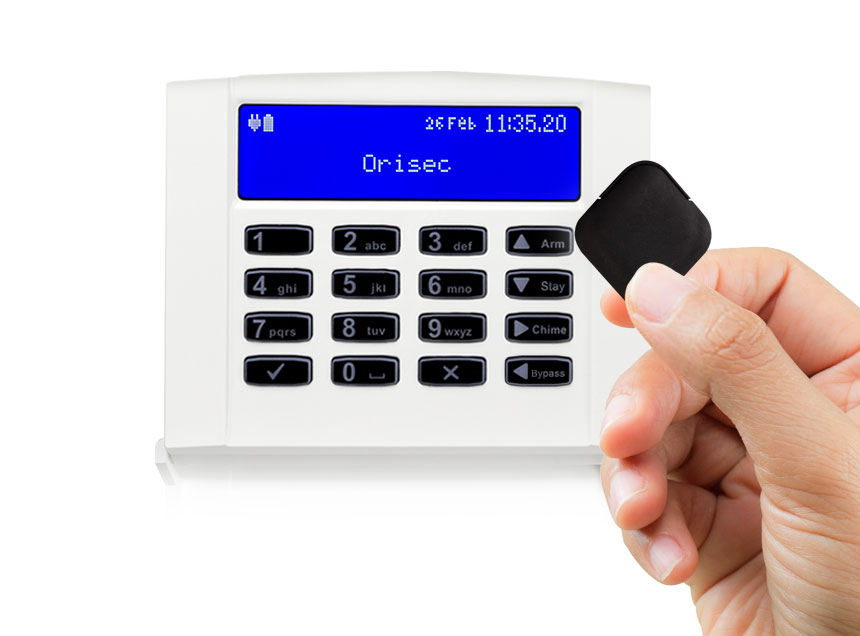

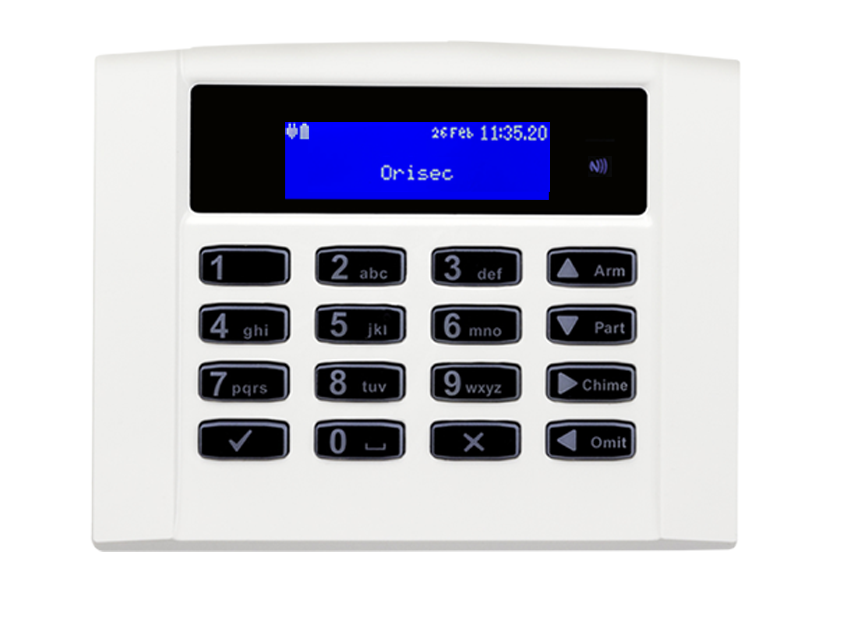

LCD Screen
Detachable Hinged Cover
Hinged PCB
Integrated Installation Manual
1 Zone Input / Output
128 Character Display
Temperature Sensor
On-Board Sounder

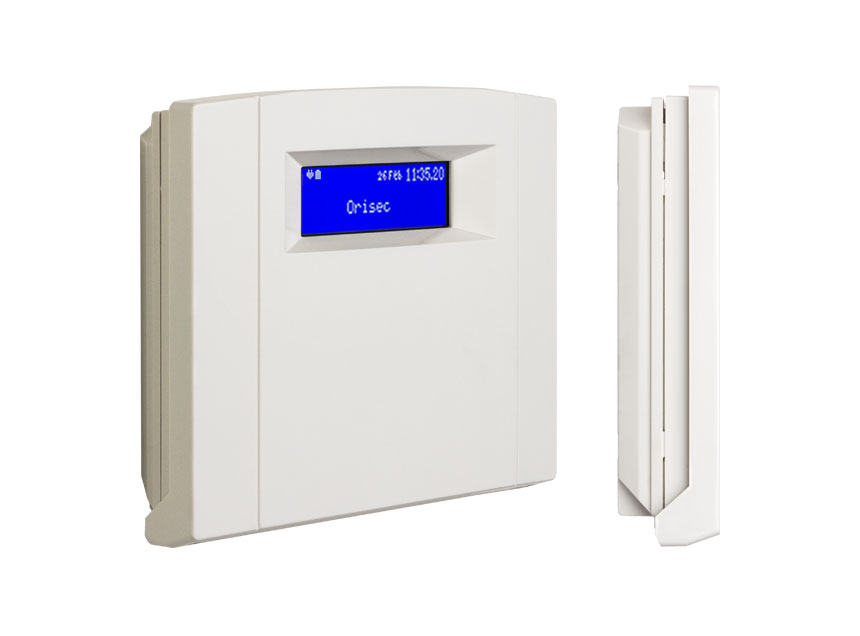

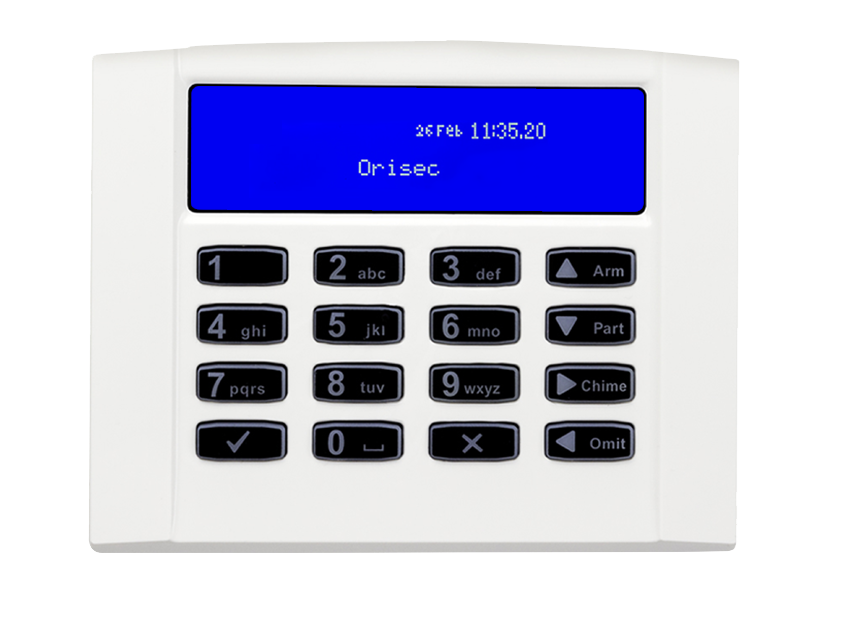

Large LCD Screen
Detachable Hinged Cover
Hinged PCB
Integrated Installation Manual
1 Zone Input / Output
128 Character Display
Temperature Sensor
On-Board Sounder

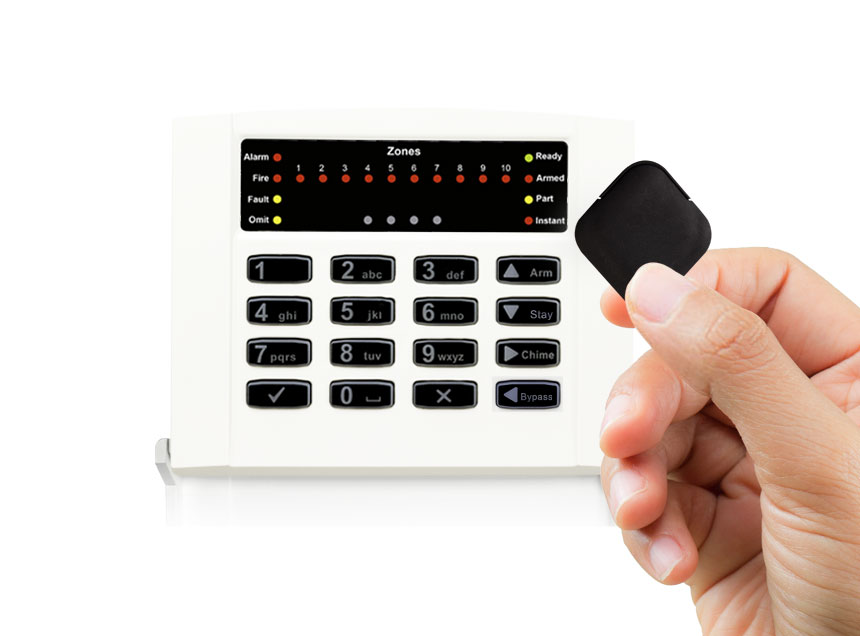

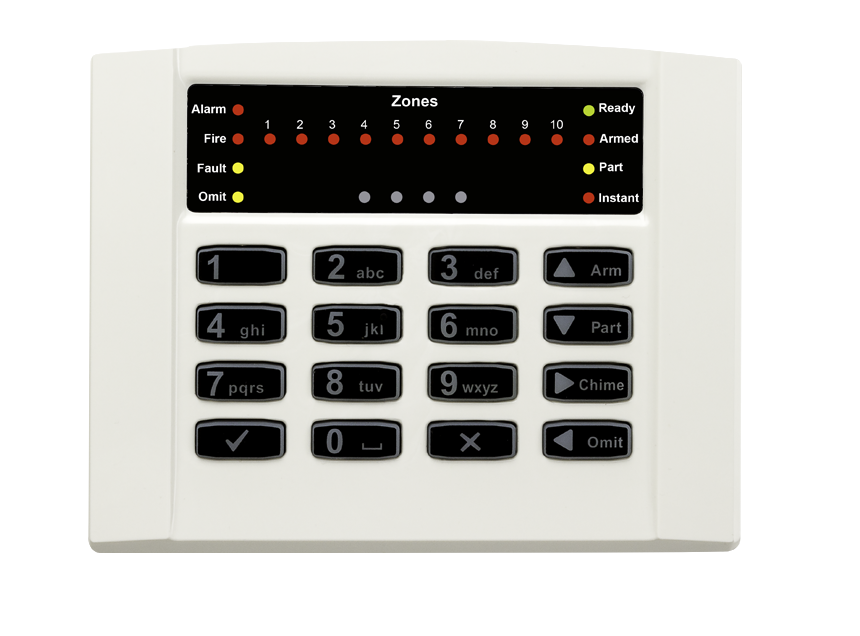

10 Zone LED Display

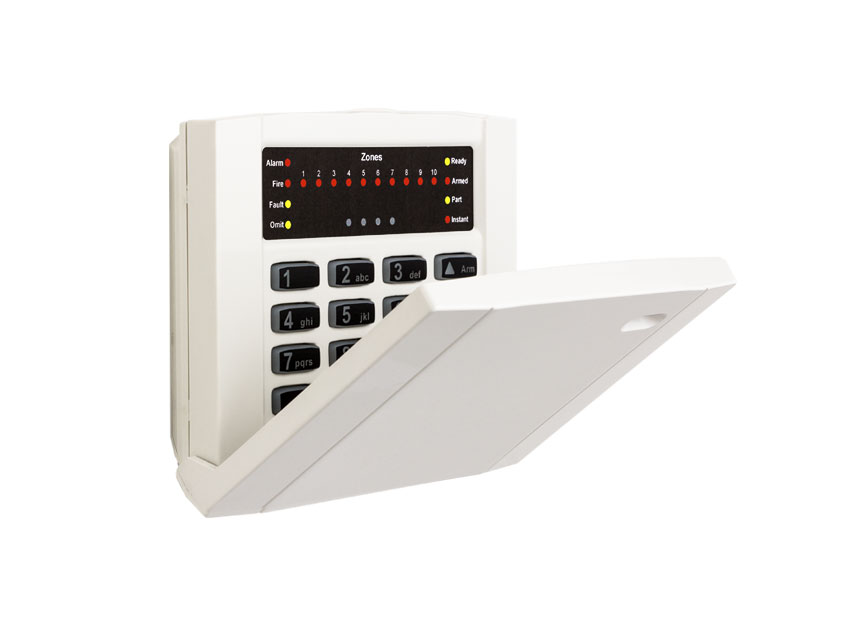

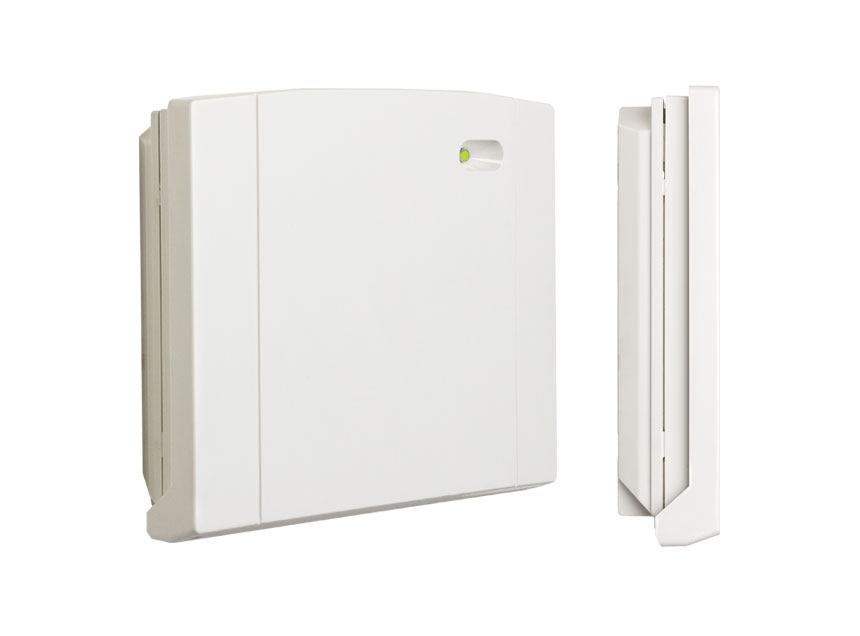

Detachable Hinged Cover
Hinged PCB
20 Zone LED Display
Detachable Hinged Cover
Hinged PCB
Using a Mobile - Rotate Device to View
| RK-400-LED-10 | RK-400-LED-20 | RK-400-LCD | RK-400-LCD | |
|---|---|---|---|---|
| Description | LED keypad with Detacable Hinged Cover (10 zone display) | LED keypad with Detacable Hinged Cover (20 zone display) | LCD keypad with Detacable Hinged Cover | Large Display LCD keypad with Detacable Hinged Cover |
| Inegrated Installation Manual | ||||

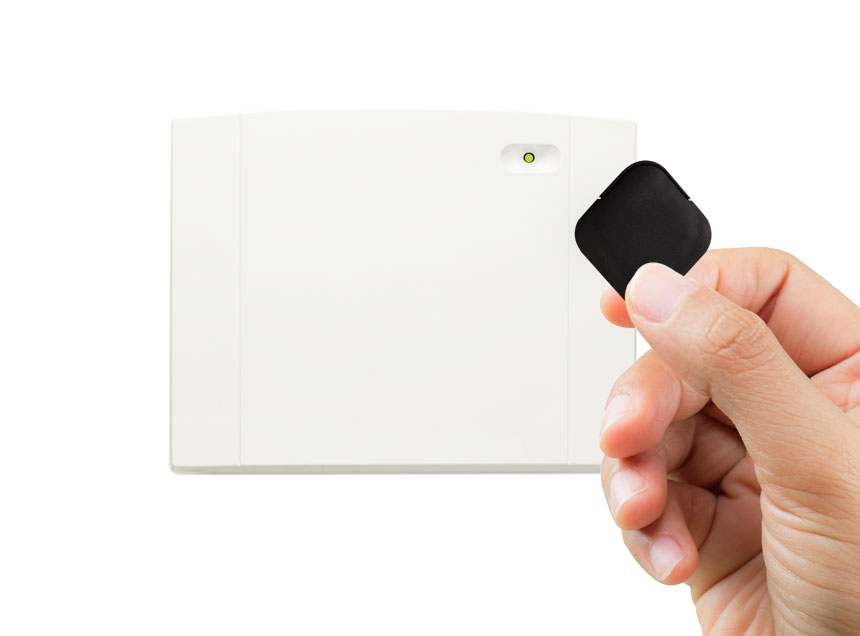

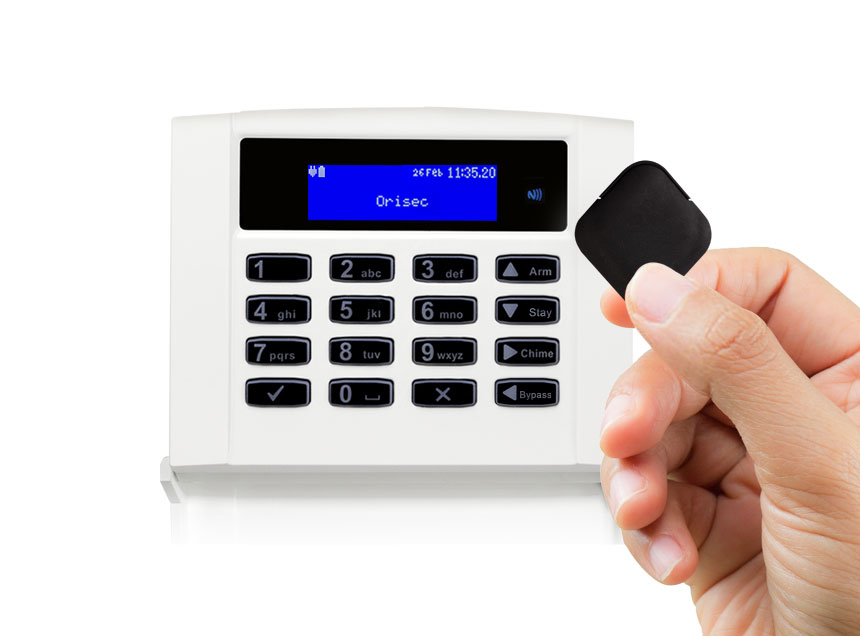

| NFC Prox Tag Support | Optional | Optional | Optional | Optional |
| Inputs/Outputs | 1 | 1 | 1 | 1 |
| 128 Character Display | ||||
| Temperature Sensor | ||||
| On-Board Sounder | ||||
| 16 Ohm Speaker Support | ||||
| 'Copy & Paste' Function | ||||
| Selectable Language Per User | ||||
| Programmable Volume Levels | ||||
| Light Sensor | ||||
| Self-Adjusting Baclkight | ||||
| Tamper Detection Options | Lid (Optional Wall) | Lid (Optional Wall) | Lid (Optional Wall) | Lid (Optional Wall) |
| QWERTY Keyboard | ||||
| Company Logo on Screen | ||||
| User Selectable Colour | ||||
| Keypad Randomiser | ||||
| Full Programming | ||||
| Hinged PCB | ||||
| Mounting Options | Low Profile | Low Profile | Low Profile | Low Profile |
| Input Voltage | 10-15 Vdc | 10-15 Vdc | 10-15 Vdc | 10-15 Vdc |
| Current Consumption - Quiescent | 30mA | 30mA | 35mA | 35mA |
| Current Consumption - Backlit | 50mA | 50mA | 70mA | 70mA |
| Dimensions (based on low profile) | 141mm x 111mm x 30mm | 141mm x 111mm x 30mm | 141mm x 111mm x 30mm | 153mm x 120mm x 30mm |
| Material | High Density ASA | High Density ASA | High Density ASA | High Density ASA |
