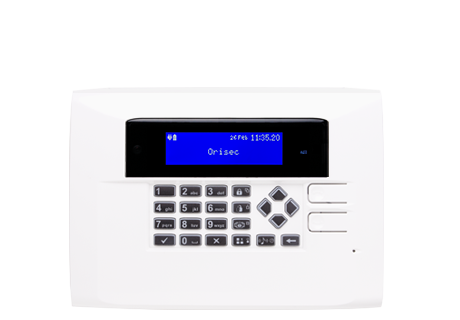

W-ZP-40K


Summary

Stand-Alone Wireless Panel
Up to 40 Zones
Up to 10 On Board Zones
Up to 5 Panel Outputs
Dedicated SAB Outputs
Network External Sounder Suppprt
Integrated Help File
Integrated Keyed Keypad
Selectable language Per User
NFC Prox Tag Support
Voice Annunciation
Integrated Wireless Expander
Compact All-in-one design
Integrated 2-Button Personal Alarm
iOS & Android Apps

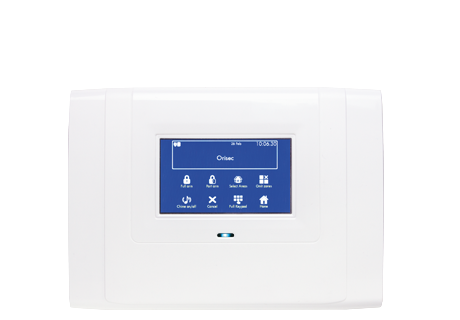

W-ZP-40T


Summary

Stand-Alone Wireless Panel
Up to 40 Zones
Up to 10 On Board Zones
Up to 5 Panel Outputs
Dedicated SAB Outputs
Network External Sounder Suppprt
Integrated Help File
Integrated Touch Keypad
Selectable language Per User
NFC Prox Tag Support
Voice Annunciation
QWERTY Keyboard
Integrated Wireless Expander
Compact All-in-one design
Integrated 2-Button Personal Alarm
iOS & Android Apps

W-ZP-40E


Summary

Stand-Alone Wireless End Station
Up to 40 Zones
Up to 10 On Board Zones
Up to 5 Panel Outputs
Dedicated SAB Outputs
Network External Sounder Suppprt
Voice Annunciation
Integrated Wireless Expander
iOS & Android Apps

Using a Mobile - Rotate Device to View
W-ZP-40K W-ZP-40T W-ZP-40E
Onboard Zones Up to 10 Up to 10 Up to 10
Maximum Zones 40 40 40
Onboard Outputs Up to 5 Up to 5 Up to 5
Maximum Outputs 44 44 44
Users 40 40 40
Additional Keypads 3 3 4
True Areas 4 4 4
Expanders 3 3 3
NFC Tags
Dedicated SAB Outputs
Network External Sounders 2 2 2
PSTN Module (plug-on) PSTN-2 PSTN-2 PSTN-2
Wi-Fi Module (plug-on) WIFI-2 WIFI-2 WIFI-2
GSM/GPRS Module (plug-on) GSM-2 GSM-2 GSM-2
Ethernet Module (plug-on) ETHERNET-2 ETHERNET-2 ETHERNET-2
Dual Path Modules (plug-on) PSTN-GSM-2
GSM-WIFI-2
GSM-ETHERNET-2 & PSTN-WIFI-2		 PSTN-GSM-2
GSM-WIFI-2
GSM-ETHERNET-2 & PSTN-WIFI-2		 PSTN-GSM-2
GSM-WIFI-2
GSM-ETHERNET-2 & PSTN-WIFI-2
Event Logging 1250 1250 1250
3rd Party Communication Ports 2 2 2
16 Ohm Speaker Support
Backup Battery (included) 2.4 Ah NiMH 2.4 Ah NiMH 2.4 Ah NiMH
Integrated Installation Manual
NFC Prox Tag Support (via Keypad)
128 Character Display
Programmable Volume Levels
QWERTY Keyboard
Company Logo on Screen
User Selectable Colours
Keypad Randomiser
Light Sensor
Self-Adjusting Backlight
Temperature Sensor
On-Board Sounder
8 Ohm Speaker provided
'Copy & Paste' Function
Selectable Language Per User
Tamper Detection Options Lid, Wall & Screw Lid, Wall & Screw Lid, Wall & Screw
Voice Annunciation
