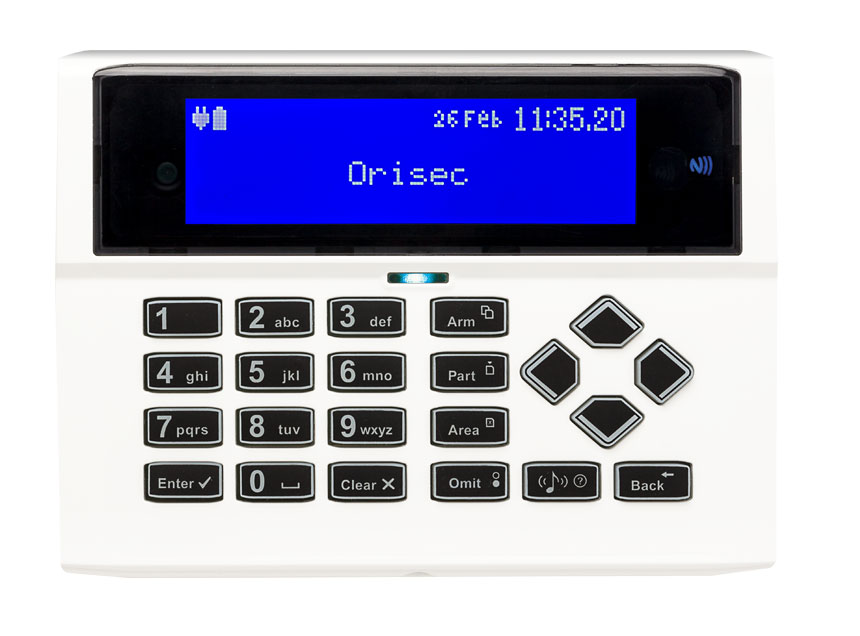

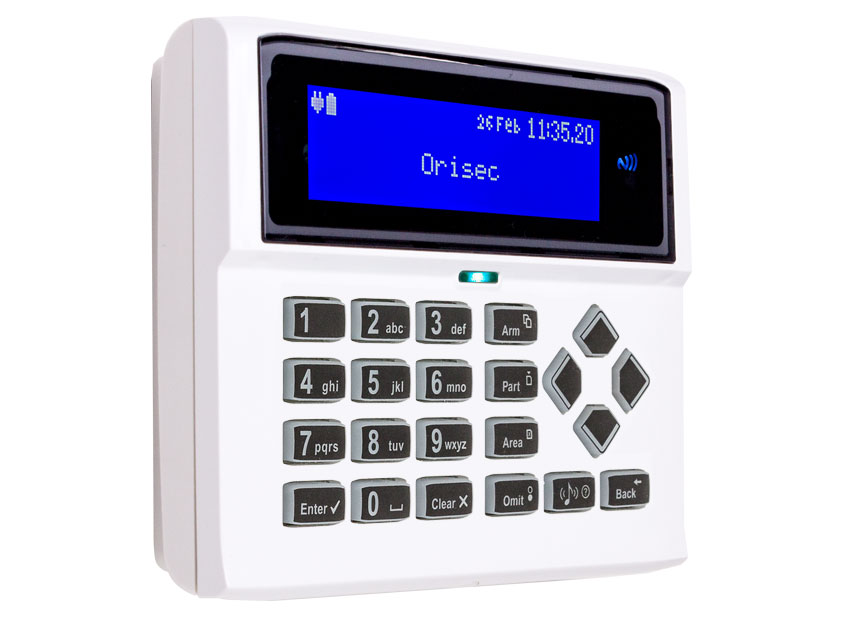

W-RK-700
Summary
Battery or Locally PoweredFull Programming
Integrated Installation Manual
NFC Prox Tag Support
1 Zone Input
128 Character Display
Programmable Volume Levels
Light Sensor
Self Adjusting Backlight
Temperature Sensor
On-Board Sounder

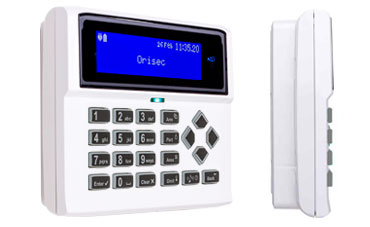

W-RK-700 Mounting

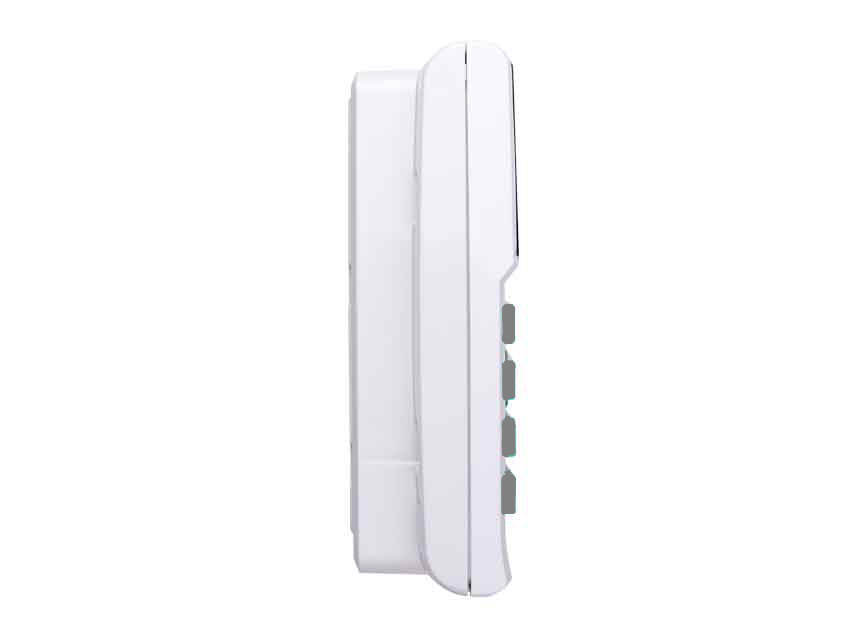

Low Profile Surface Mount
Using a Mobile - Rotate Device to View
| W-RK-700 | |
|---|---|
| Locally Powered | 12V DC |
| Battery Powered | 2,4 6 or 8 x AA Alkaline 1.5V |
| Current Consumption - Quiescent | 10µA |
| Current Consumption - Backlit | 35mA |
| Dimensions W x H x D mm | 166mm x 121mm x 38mm |
