Expanders

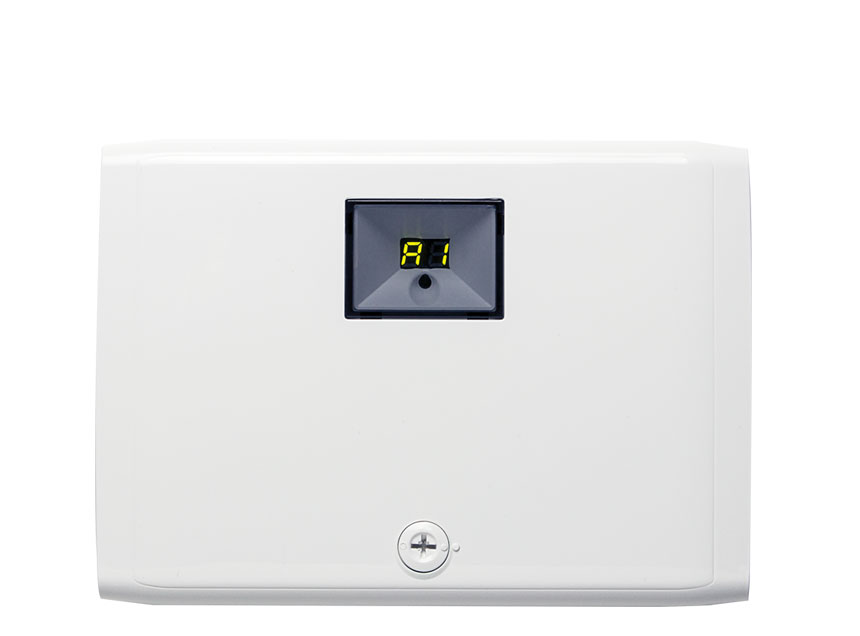

ZX-10
Zone & Output Expander
Summary
10 Zones10 Outputs (Switch to 0V @ 100mA)
On-board Piezo
16 Ohm Loudspeaker Driver/Output Programmable Volume Levels Screw Tamper Protection RJ45 Support for Network In/Out Stylish Housing 7 Segment Display Address Noise Notification Programmable Locally Temperature Sensor

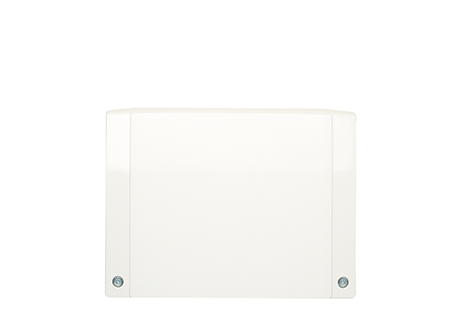

ZX-10-E
Zone Expander
Summary
10 ZonesStylish Housing

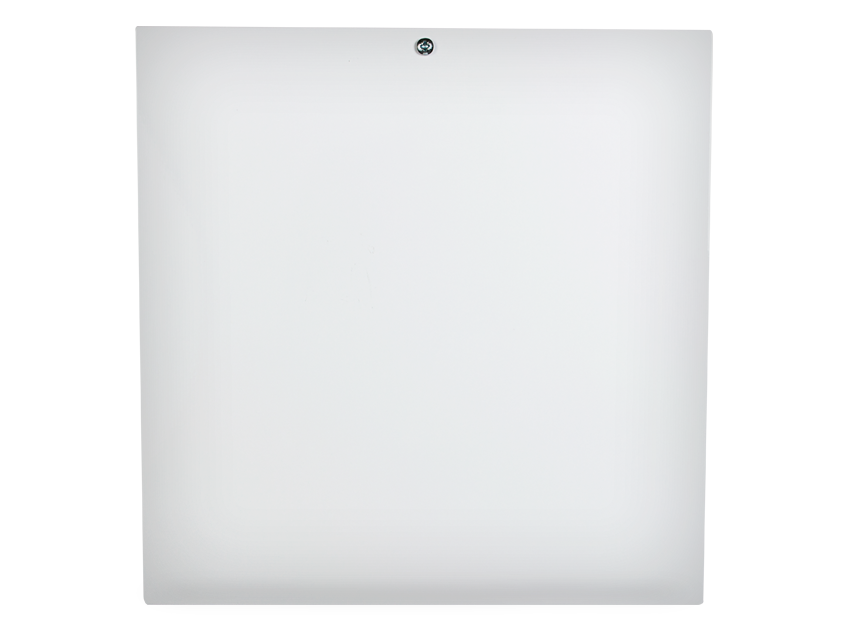

PZX-10
Powered Zone Expander
Summary
Intelligent 2.75 Amp PSU10 Zones
10 Outputs (Switch to 0V @ 100mA)
On-board Piezo
16 Ohm Loudspeaker Driver/Output Programmable Volume Levels Screw Tamper Protection RJ45 Support for Network In/Out Stylish Housing 7 Segment Display Address Noise Notification Programmable Locally Temperature Sensor

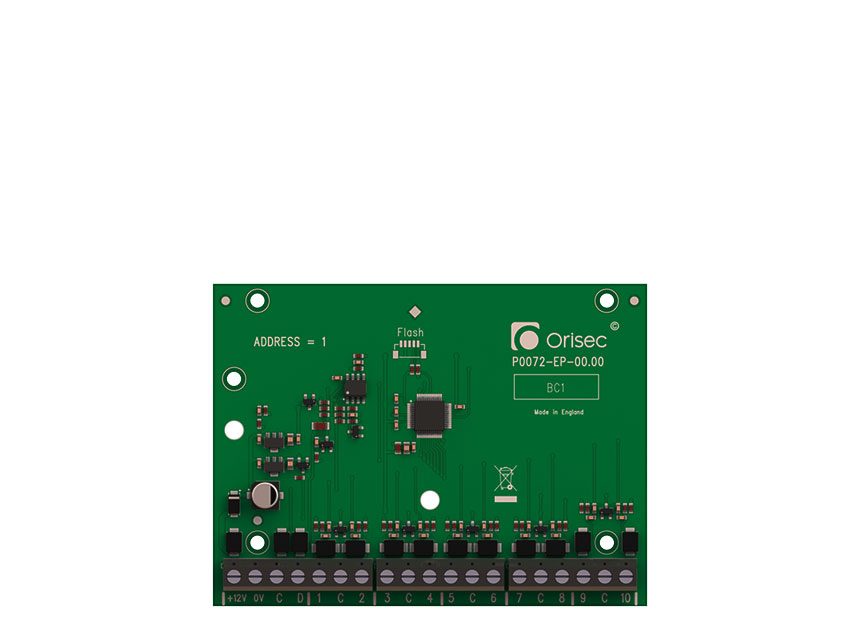

ZX-10-L
Local Zone Expander
Summary
Mount inside Control Panel
10 Zones
W-XP
Wireless Expander
Summary
2 Way Wireless CommunicationsSupports up to 100 Wireless Devices*
2 Outputs
3 Amp Relay
1 Transistorized 100mA Output
On-Board Piezo
16 Ohm Loudspeaker Driver/Output
Programmable Volume Levels
Screw Tamper Protection
RJ45 Support for Network In / Out
Stylish Housing
7 Segment Display
Address Noise Notification
Light Sensor
Tamper Return Terminal for
Sounders & Speakers
Antenna Diversity
Temperature Sensor
Frequency Hopping Technology
*Panel Dependent

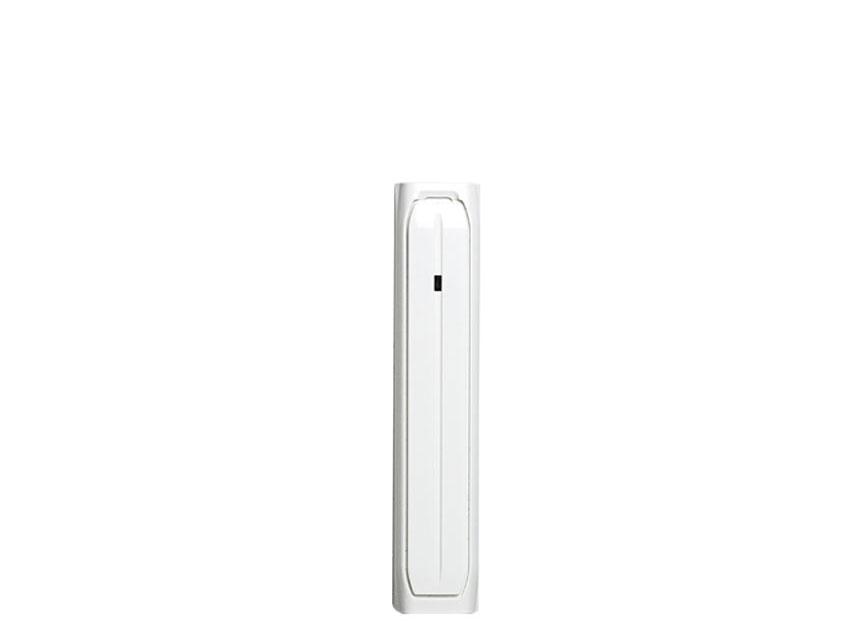

W-XP-R
Wireless Expander, Repeater & Bridge
Summary
2 Way Wireless CommunicationsSupports up to 100 Wireless Devices*
Network Connection
Small and Cost Effective
Stylish Housing
Temperature Sensor
Frequency Hopping Technology
*Panel Dependent

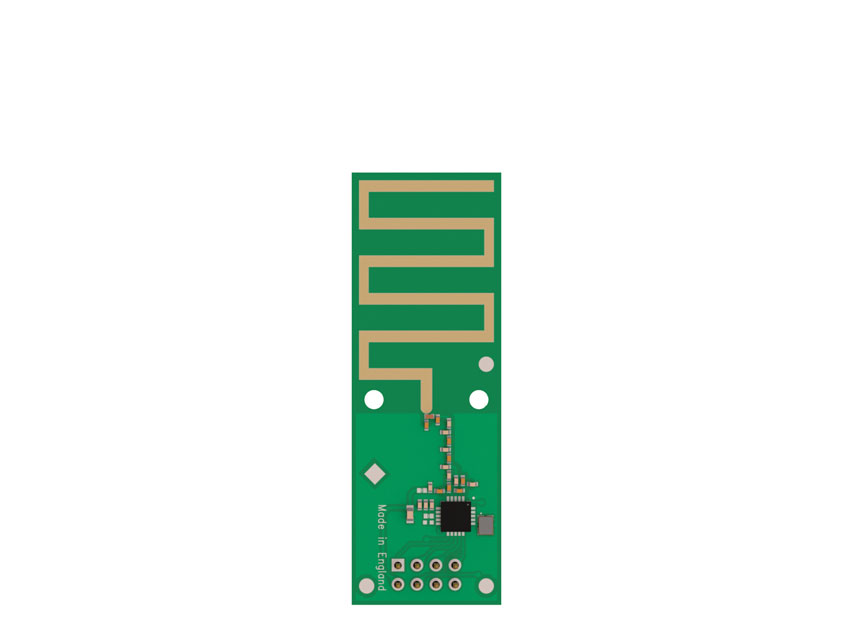

W-AP
Wireless Access Point
Summary
2 Way Wireless CommunicationsFrequency Hopping Technology
Supports up to 100 Wireless Devices
Plug-on Compatability:
CP-10
CP-20
CP-10-LCD
CP-10-LCD
CP-10-T
CP-20-LCD
CP-20-T
XD1, XD2, XD4
ROX-10
Wireless Relay Output Expander
Summary
2 Way Wireless CommunicationsFrequency Hopping Technology
Supports up to 100 Wireless Devices
10 Outputs
Temperature Sensor
W-ROX-10
Wireless Relay Output Expander
Summary
2 Way Wireless CommunicationsFrequency Hopping Technology
Supports up to 100 Wireless Devices
10 Outputs
Temperature Sensor
W-UR-1
Wireless Universal Receiver
Summary
1 Zone2 Way Wireless Communications
Frequency Hopping Technology
Supports up to 100 Wireless Devices
W-UR-5
Wireless Universal Receiver
Summary
5 Zones2 Way Wireless Communications
Frequency Hopping Technology
*Panel Dependent
W-UR-10
Wireless Universal Receiver
Summary
10 Zones2 Way Wireless Communications
Frequency Hopping Technology
*Panel Dependent
Using a Mobile - Rotate Device to View
| ZX-10 | ZX-10E | ZX-10L | PZX-10 | ROX10 | W-XP | W-XP-R | W-AP | ROX-10 | W-ROX-10 | W-UR-1 | W-UR-5 | W-UR-10 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connectivity | Wired | Wired | Wired | Wired | Wired/Wireless* | Wireless | Wireless | Wireless | Wireless | Wired/Wireless* | Wireless | Wireless | Wireless | Wireless |
| Zones | 10 | 10 | 10 | 10 | 1 | 5 | 10 | |||||||
| Outputs | 10 | 10 | 10 | 2 | 10 | 10 | 1 | 5 | 10 | |||||
| On Board Piezo | ||||||||||||||
| 16 Ohm Speaker Support | ||||||||||||||
| Tamper Detection | Lid, Wall & Screw | Lid, Wall & Screw | Lid, Wall | Lid, Wall & Screw | Lid, Wall | |||||||||
| RJ45 Support for network In/Out | ||||||||||||||
| 7 Segment Display | ||||||||||||||
| Address Noise Notification | ||||||||||||||
| Local Diagnostics | ||||||||||||||
| Temperature Sensor | ||||||||||||||
| 2 Way Wireelss Communications | ||||||||||||||
| Light Sensor | ||||||||||||||
| Tamper Return Terminal for Sounders & Speakers | ||||||||||||||
| Antenna Diversity | ||||||||||||||
| Frequancy Hopping Technology | ||||||||||||||
| Acts as a Wireless Repeater | ||||||||||||||
| Acts as a Wireless Bridge | ||||||||||||||
| Housing | High Density ASA 2 X options Available |
High Density ASA 2 X options Available |
High Density ASA / 1.2mm Steel |
High Density ASA | High Density ASA 2 X options Available | High Density ASA | High Density ASA | High Density ASA | High Density ASA | High Density ASA | High Density ASA | |||
| Wireless Devices | Supports up to 100 wireless devices | Supports up to 100 wireless devices | Supports up to 100 wireless devices | 1 | 5 | 10 | ||||||||
| Built-in Power Supply | ||||||||||||||
| Plug-on Compatability | CP-10, CP-20, CP-10-LCD, CP-10-T, CP-20-LCD, CP-20T, XD1, XD2, XD4 |
|||||||||||||
| Frequencies | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz | 868.65MHz & 869.15MHz |
* with optional W-AP Wireless Access Point.
