300 Series Detectors

Wired
Wireless

IR-300-AM

Anti-Masking
Digital PIR Detector

Summary

Anti-Masking PIR
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Interchangeable Cartridges
Programmable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Lid, Screw and Wall Tamper†
Optional Grade 3 Bracket†

†Patent Pending

QD-300-AM

Anti-Masking
Digital Quad PIR Detector

Summary

Anti-Masking Quad PIR
Genuine Quad Element Pyro
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Interchangeable Cartridges
Programmable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Lid, Screw and Wall Tamper†
Optional Grade 3 Bracket†

†Patent Pending

DT-300-AM

Anti-Masking
Digital Dual Technology Detector

Summary

Anti-Masking
Dual Technology Combined
Microwave (24GHz) / PIR
15 Metre Range
Multi Height Optics
1.8m - 3.1m Mounting Height
Interchangeable Cartridges
Programmable EOL Resistors
Slide to Fit Front Cover
Remote LED Disable
Sealed Optics
True Creep Zones
Digital Pulse Count†
Temperature Compensation
Digital Signal Processing†
RFI Immunity up to 2.7GHz
Lid, Screw and Wall Tamper†
Optional Grade 3 Bracket†

†Patent Pending

Features

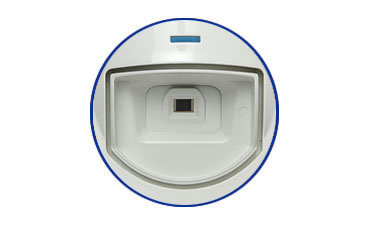

Sealed Optics

Sealed optics prevent bugs and dust from entering the housing, reducing false alarms and maximising reliability.

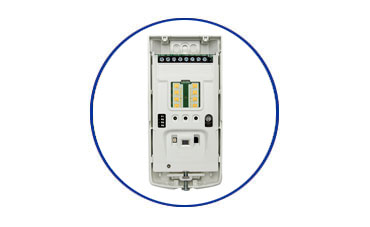

Interchangeable Cartridges

The 200 & 300 Series feature interchangeable cartridges which aid installation, protect the electronics and enable simple upgrading throughout each series.

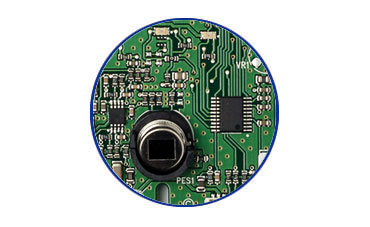

Digital Signal Processing†

Orisec’s advanced digital signal processing gives the very best intruder detection combined with false alarm and RFI immunity right up to 2.7GHz.
†Patent Pending

Using a Mobile - Rotate Device to View

	IR-300-AM	QD-300-AM	DT-300-AM
Description	Anti-Masking PIR	Anti-Masking Quad PIR	Anti-Masking Dual Technology
Detection Technology	Active IR Anti-Mask PIR	Active IR Anti-Mask Genuine Quad Element Pyro	Active IR Anti-Mask Dual Technology
Slide to Fit Front Cover
RFI Immunity up to 2.7GHz
Optics	Multi Height Spherical Sealed	Multi Height Spherical Sealed	Multi Height Spherical Sealed
Detection Areas	68	136	68
True Creep Zones
Range	15m x 90°	15m x 90°	15m x 90°
Mounting Height	1.8m to 3.1m	1.8m to 3.1m	1.8m to 3.1m
Selectable Built in EOL Resistors
Remote LED Control
Pulse Count†	Digital, 1 or 2	Digital, 1 or 2	Digital, 1 or 2
Temperature Compensation
Tamper Detection Options	Lid, Wall & Bracket	Lid, Wall & Bracket	Lid, Wall & Bracket
Ceiling/Wall Bracket Option	(DB-G3)	(DB-G3)	(DB-G3)
Advanced Signal Processing
Microwave Frequency			K-Band, 24.15-24.25 GHz
Microwave Enable/Disable
Dimensions W x H x D mm	64 x 132 x 40	64 x 132 x 40	64 x 132 x 40
Interchangeable Cartridges
Anti-Masking (Active IR)
Self test	Local & Remote	Local & Remote	Local & Remote
